Description

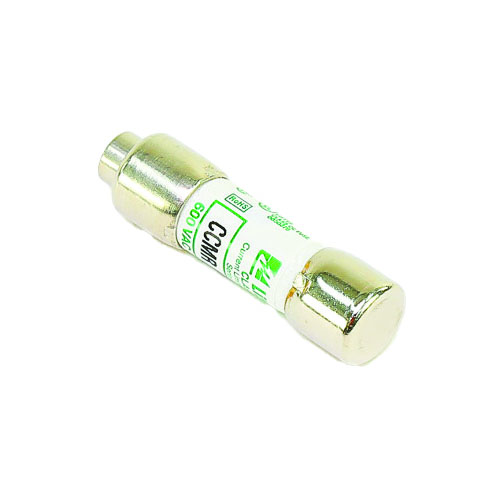

The Littelfuse CCMR001.TXP is a 1 amp Class CC dual-element time delay fuse engineered for dependable overcurrent protection in demanding industrial and commercial electrical systems. Rated at 600V AC, it safely absorbs short-duration inrush currents during motor and transformer startup, eliminating nuisance blowing while standing firm against genuine overload and short-circuit events. Its extremely current-limiting design paired with a 200 kA interrupting capacity delivers fast, decisive fault response — keeping equipment and personnel protected even under severe fault conditions. The compact Class CC form factor fits neatly into space-constrained electrical panels without sacrificing performance or reliability.
Key Features
- 1A current rating with 600V AC overcurrent protection
- Class CC dual-element time delay design for precise protection
- Tolerates inrush currents from motors, transformers, and control circuits without nuisance tripping
- Extremely current-limiting construction for superior fault containment
- High interrupting capacity rated up to 200 kA for industrial-grade safety
- Compact footprint designed for space-saving panel installations
- RoHS compliant materials for environmentally responsible installations
