Description
Reliable Overcurrent Protection for Industrial and Commercial Applications

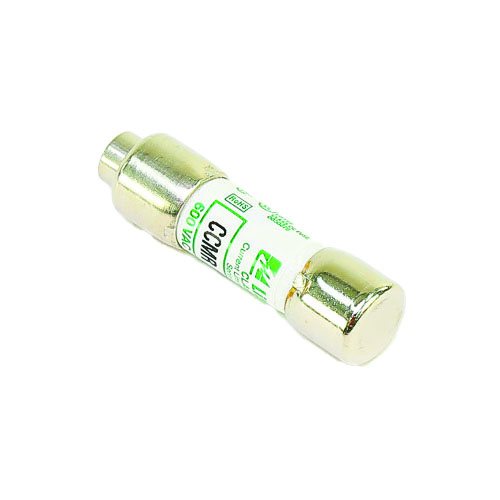

The Littelfuse CCMR003.TXP is a 2 Amp Class CC dual-element time delay fuse engineered for dependable overcurrent protection in demanding industrial and commercial electrical systems. Rated at 600V AC, this fuse is built to tolerate short-duration inrush currents without nuisance blowing — making it an ideal choice for circuits powering inductive loads such as transformers, small motors, and control equipment. Its extremely current-limiting design combined with high interrupting capacity ensures fast, decisive fault clearing that safeguards connected equipment and personnel. The compact Class CC form factor makes it well-suited for space-constrained panel installations where both reliability and efficiency are critical.
Key Features
- 2A rating with 600V AC overcurrent protection capability
- Class CC dual-element time delay design for inductive load compatibility
- Tolerates startup inrush currents without nuisance tripping
- Extremely current-limiting construction for superior fault protection
- High interrupting capacity rated for industrial safety applications
- Compact footprint designed for space-saving panel installation
- RoHS compliant materials for environmental and regulatory compliance
