Description

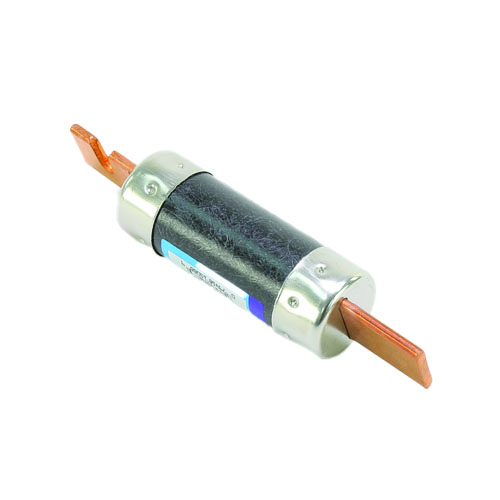

The Littelfuse FLNR200 is a 200 amp, 250 V time-delay Class RK5 fuse engineered for high-capacity overcurrent protection in demanding industrial and commercial electrical systems. Featuring a dual-element, slow-blow design, it allows temporary inrush currents from motors, transformers, and other inductive loads to pass without nuisance openings, while still providing strong protection against sustained overloads and short circuits. Built with a knife-blade construction, this fuse ensures secure connections and reliable performance in high-current applications. With a high interrupting rating and excellent current-limiting capability, the FLNR200 is ideal for power distribution systems, motor control centers, and heavy-duty equipment protection.
Key Features:
- 200 amp current rating for heavy-duty circuit protection
- 250 V AC rating (125 V DC) for industrial applications
- Time-delay (dual-element slow blow) design handles inrush currents
- Class RK5 fuse with strong current-limiting performance
- High interrupting rating (up to 300 kA AC typical)
- Knife-blade construction for secure, high-current connections
- Ideal for motors, transformers, and power distribution systems
