Description

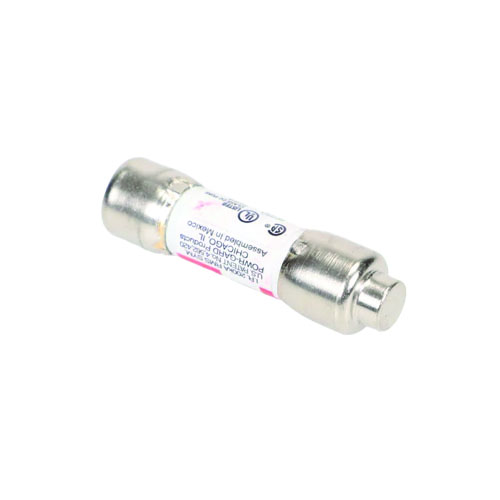

The Littelfuse KLDR.500TXP delivers dependable overcurrent protection for control circuits, transformers, solenoids, and other inductive components that experience high inrush currents during startup. Its time-delay characteristic prevents nuisance tripping under normal transient conditions, while its current-limiting design ensures rapid response to dangerous overloads and short-circuit faults — safeguarding equipment and minimizing downtime.
Built to the Class CC rejection-style standard, this fuse installs securely in compatible Class CC fuse holders and switchgear, eliminating the risk of incorrect fuse substitution. Its compact form factor conserves valuable panel space without compromising protection performance. With a high interrupting rating of up to 200kA AC and full RoHS compliance, the KLDR.500TXP is a trusted solution for both industrial and environmentally conscious applications.
Key Features
- 0.5A time-delay (slow-blow) protection for inductive load applications
- Rated for 600V AC / 300V DC operation
- Class CC current-limiting, rejection-style fuse construction
- High interrupting capacity up to 200kA AC
- Withstands transformer and solenoid startup inrush currents without nuisance opening
- Compact design for space-saving panel and switchgear installation
- Ideal for control circuits, control transformers, and inductive loads
- RoHS compliant for environmentally responsible applications
