Description

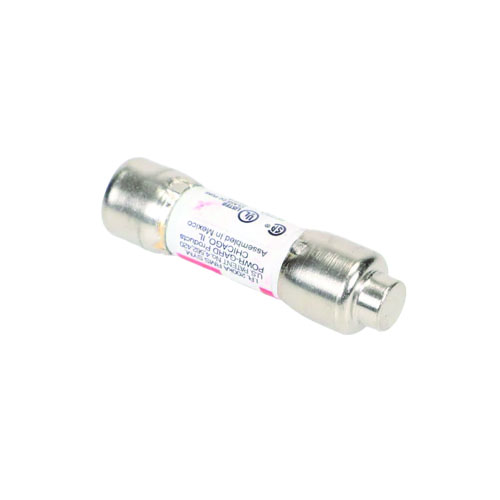

The Littelfuse KLDR.600TXP delivers precise, dependable overcurrent protection for sensitive control circuits and inductive loads in demanding industrial and commercial environments. Rated at 0.6 amps and 600 volts, this time-delay Class CC fuse is built to handle the temporary inrush currents generated by transformers, solenoids, and similar inductive devices — eliminating nuisance trips while still responding swiftly and decisively to genuine overloads and short circuits.
Its current-limiting, rejection-style construction provides a high interrupting capacity of up to 200kA AC, offering an exceptional level of fault protection in a compact Class CC form factor. The space-saving design integrates seamlessly into compatible fuse holders and panel-mount applications, making it an efficient choice for tight installations. RoHS compliant materials ensure this fuse meets modern environmental standards without compromising performance.
Key Features
- 0.6A time-delay (slow-blow) protection prevents nuisance tripping on harmless inrush currents
- Rated for 600V AC / 300V DC operation across a wide range of applications
- Class CC current-limiting, rejection-style design for enhanced circuit safety
- High interrupting capacity up to 200kA AC for superior fault protection
- Withstands transformer and solenoid inrush currents without premature opening
- Compact form factor enables space-efficient installation in fuse holders and panels
- Optimized for control circuits, inductive loads, and sensitive industrial components
- RoHS compliant construction supports environmentally responsible electrical design
