Description

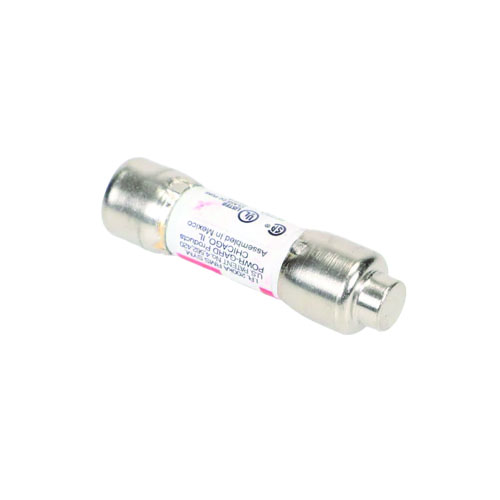

The Littelfuse KLDR.800TXP delivers precision overcurrent protection where reliability and selectivity matter most. Rated at 0.8 amps and 600 volts, this time-delay Class CC fuse is purpose-built for industrial control circuits and inductive load applications — including transformers, solenoids, and motor control equipment. Its current-limiting, rejection-style construction absorbs temporary inrush currents without nuisance opening, yet responds rapidly to dangerous overloads and short-circuit conditions to safeguard sensitive downstream components. With a high interrupting rating of up to 200kA AC, it provides robust fault protection in demanding environments. The compact Class CC form factor simplifies installation in compatible fuse holders and switchgear, helping conserve valuable panel space. RoHS compliant construction supports environmentally responsible sourcing and compliance requirements.
Key Features
- 0.8A time-delay (slow-blow) protection for inductive and control circuit applications
- Rated for 600V AC / 300V DC operation
- Class CC current-limiting, rejection-style design prevents misapplication
- High interrupting capacity up to 200kA AC for superior fault protection
- Withstands transformer and solenoid inrush currents without nuisance opening
- Compact form factor enables space-saving installation in panels and switchgear
- Ideal for protecting sensitive industrial control components
- RoHS compliant for environmentally responsible applications
