Description

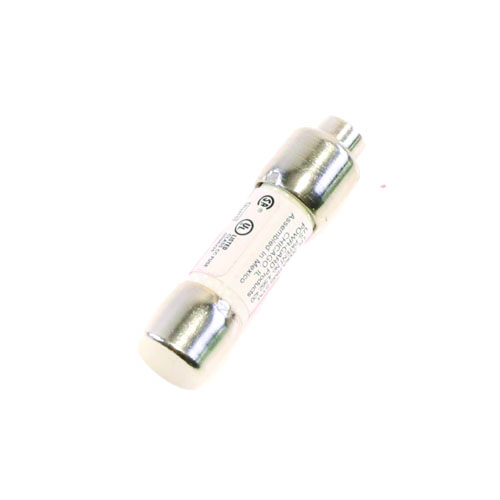

The Littelfuse KLDR003.TXP delivers precise, dependable overcurrent protection for industrial control circuits and inductive load applications. Engineered as a current-limiting, rejection-style Class CC fuse, it absorbs temporary inrush currents from transformers, solenoids, and motor starting conditions without nuisance opening — then responds rapidly and decisively when genuine overload or short-circuit faults occur.
With a compact form factor and high interrupting capacity, this fuse is purpose-built for industrial control panels where space is at a premium and protection performance cannot be compromised. The Class CC rejection design ensures compatibility with dedicated fuse holders, preventing accidental substitution with lower-rated fuses and maintaining circuit integrity in demanding electrical environments. RoHS compliant construction supports environmentally responsible procurement and installation.
Key Features
- 3A time-delay (slow-blow) protection for inductive and control circuit applications
- Rated voltage: 600V AC / 300V DC
- Class CC current-limiting, rejection-style construction
- High interrupting capacity up to 200kA AC
- Tolerates transformer, solenoid, and motor inrush currents without nuisance opening
- Compact design for space-saving installation in industrial control panels
- Compatible with Class CC rejection-style fuse holders
- RoHS compliant for environmentally responsible applications
