Description

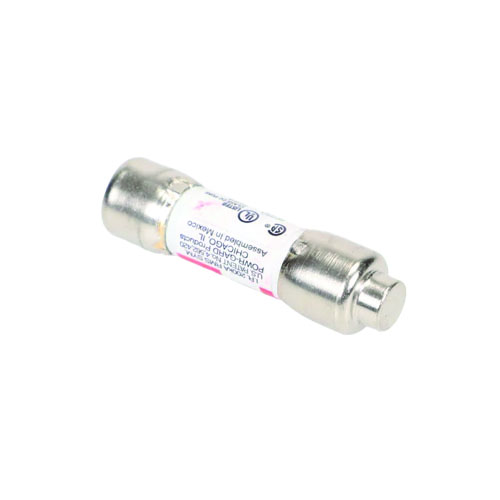

The Littelfuse KLDR01.5TXP is a precision-engineered 1.5-amp, 600-volt time-delay Class CC fuse built to protect control circuits and inductive loads in demanding industrial environments. Its current-limiting, rejection-style design intelligently tolerates temporary inrush currents from transformers, solenoids, and motor starting conditions — preventing nuisance tripping — while responding rapidly and decisively to genuine overload and short-circuit faults.
Designed for use in industrial control panels and motor control applications, this fuse delivers the compact footprint, high interrupting capacity, and dependable time-delay performance that modern electrical systems demand. The Class CC form factor ensures compatibility with standard rejection-style fuse holders, maximizing installation flexibility while conserving panel space. RoHS-compliant materials support environmentally responsible design and compliance-driven projects.
Key Features
- 1.5A time-delay (slow-blow) protection for inductive and control circuit applications
- 600V AC / 300V DC voltage rating for versatile deployment
- Class CC current-limiting, rejection-style fuse construction
- High interrupting capacity up to 200kA AC for robust fault protection
- Tolerates transformer, solenoid, and motor inrush currents without nuisance opening
- Compact form factor enables space-saving installation in tight control panels
- Suitable for industrial control circuits, motor controls, and inductive load protection
- RoHS compliant for environmentally responsible and regulation-ready applications
