Description

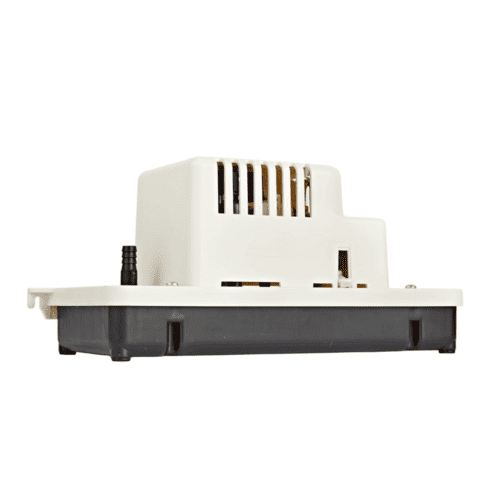

The Little Giant VCCA-20ULS is a low-profile automatic condensate removal pump built for AC, refrigeration, and dehumidification equipment where gravity drainage isn’t possible, as well as high-efficiency oil and gas-fired condensing furnaces and condensing boilers. At just 5.23″ tall, the VCCA Series’ low tank height fits in tight clearances where standard-height condensate pumps won’t clear — a common fix on retrofit installs and crowded mechanical closets.
The 1/30 HP motor delivers a maximum flow rate of 1.33 GPM (80 GPH) with a 20′ shut-off lift and 8.6 PSI max, covering the majority of residential vertical-discharge runs. Full load draw is 1.5A at 93W on 115VAC — light enough to share a circuit without tripping anything. The stainless steel motor shaft and thermal overload protection are built for continuous, unattended duty in attics and mechanical rooms.
The included safety switch can be wired to shut down the connected equipment or trigger an alarm on a high-water condition. The pump body is constructed of durable plastic, with a 3/8″ discharge fitting and a 6 ft cord for straightforward hookup. Tubing is not included, so plan for that on the parts list. CSA approved, backed by a 12-month standard warranty.
Features
- 80 GPH (1.33 GPM) maximum flow rate | 1/30 HP motor
- 20 ft shut-off lift | 8.6 PSI max — covers most vertical discharge runs
- Low-profile design (5.23″H × 5.02″W × 11.96″L) fits tight-clearance installs
- 1.5A full load / 93W at 115VAC — light electrical draw
- Built-in safety switch — wire to shutdown or alarm on high water
- Stainless steel motor shaft with thermal overload protection
- Plastic pump body construction | 3/8″ discharge fitting | 6 ft cord
- Max fluid temperature rating: 120°F
- CSA approved | 12-month standard warranty
- Suitable for AC, refrigeration, dehumidification, and high-efficiency condensing furnace/boiler equipment
- Tubing not included
