Magnatrol G116S44SC-ACTS Steam Solenoid Valve Overview

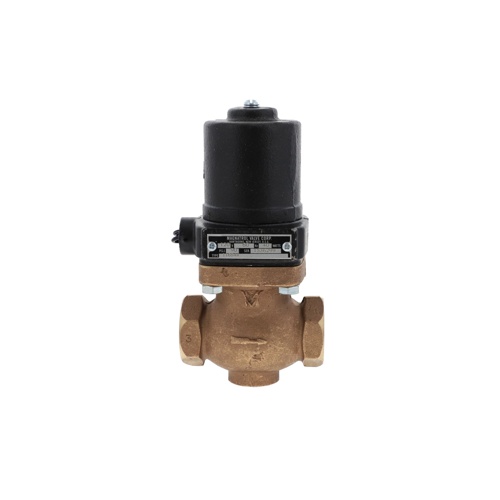

The Magnatrol G116S44SC-ACTS is a heavy-duty, normally closed (N/C) solenoid valve engineered specifically for steam service applications. With a 1″ NPT connection, 120V AC coil voltage, and an operating pressure range of 0–90 PSI, this valve delivers dependable, precise on/off control of steam flow in commercial and industrial HVAC and process systems.
Key Features
- Normally Closed (N/C) operation — valve closes automatically upon loss of power for fail-safe performance
- 1″ NPT pipe connection for straightforward installation into standard steam piping
- 120V AC coil voltage — compatible with standard commercial control circuits
- Operating pressure range: 0–90 PSI, suitable for a wide range of low- to medium-pressure steam systems
- Designed for steam media — materials and seals selected for high-temperature, high-humidity steam service
- Robust construction built to withstand the demanding thermal cycling of steam applications
Typical Applications
- Commercial and industrial steam heating systems
- HVAC steam coil control
- Process steam on/off control
- Boiler and hydronic steam distribution systems
Specifications
- SKU / Model: G116S44SC-ACTS
- Brand: Magnatrol Solenoid Valves
- Connection Size: 1″ NPT
- Media: Steam
- Valve Action: Normally Closed (N/C)
- Coil Voltage: 120V AC
- Operating Pressure Range: 0–90 PSI
Why Choose Magnatrol?
Magnatrol has been a trusted name in solenoid valve technology for decades, manufacturing valves purpose-built for steam, water, and other demanding media. The G116S44SC-ACTS reflects that heritage — offering reliable actuation, long service life, and easy integration into existing control systems.
