Description

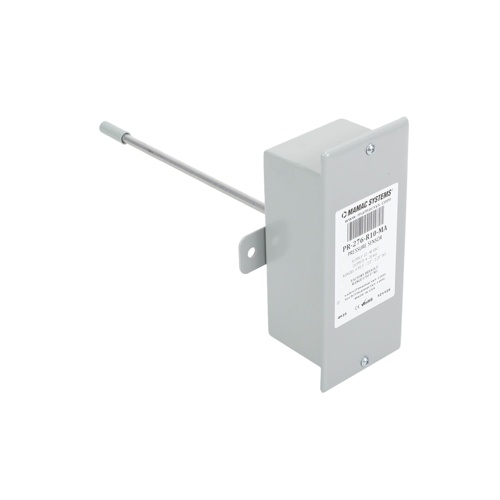

The MAMAC Systems PR-276-R10-MA is a high-performance duct static pressure sensor engineered for building automation and HVAC control applications. Featuring field-selectable pressure ranges and a reliable 4-20mA two-wire output, this sensor delivers accurate, repeatable pressure readings across a wide range of duct system configurations — all without the need to order a separate model for each range.
Field-Selectable Pressure Ranges
One of the standout features of the PR-276-R10-MA is its ability to be configured on-site to match the specific demands of the application. Technicians can select from three pressure ranges without returning to the supply house:
- 0–5″ w.c.
- 0–2.5″ w.c.
- 0–1.25″ w.c.
Electrical Specifications
- Output Signal: 4–20mA, 2-wire
- Supply Voltage: 12–40Vdc
Key Features & Benefits
- Field-selectable pressure ranges reduce inventory requirements and simplify commissioning
- 4–20mA 2-wire output ensures long-distance signal transmission with minimal noise interference
- Wide supply voltage range (12–40Vdc) provides compatibility with a broad range of BAS and DDC controllers
- Designed for duct static pressure monitoring in commercial HVAC systems
- Compact, duct-mount design for straightforward installation
- Ideal for VAV systems, air handling units, and building automation applications
Applications
- Variable Air Volume (VAV) duct static pressure control
- Air handling unit supply and return duct monitoring
- Building automation and DDC control systems
- Commercial and light industrial HVAC installations
The MAMAC Systems PR-276-R10-MA is the reliable choice for contractors and building automation professionals who need a versatile, accurate, and easy-to-install duct pressure sensor. Order today from Jackson Systems.
