Description
Overview

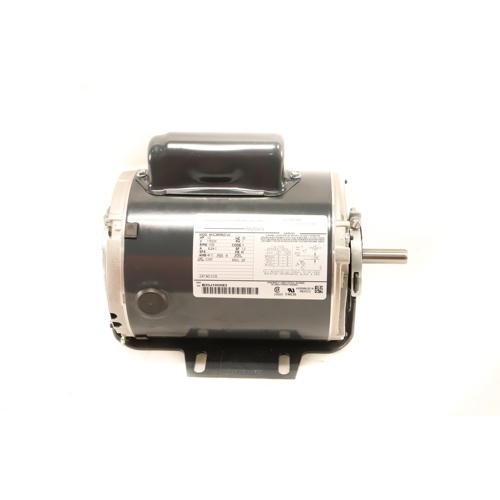

The Regal Rexnord Marathon C133 is a dependable 1/2 HP general purpose electric motor engineered for demanding HVAC and light industrial applications. Featuring a dual-voltage design and robust construction, this motor delivers consistent, efficient performance across a wide range of equipment.
Key Features
- 1/2 HP output for reliable power in HVAC and mechanical applications
- Dual voltage operation: 115/230V AC for flexible installation
- Single phase power supply compatibility
- 1725 RPM operating speed for smooth, efficient performance
- 8.2/4.1 amp draw (115V/230V) for accurate circuit sizing
- NEMA 48 frame size for easy cross-referencing and replacement
- Open Drip Proof (ODP) enclosure protects against dripping liquids in standard indoor environments
- Ball bearing construction for reduced friction, extended service life, and minimal maintenance
- Resilient base mounting for vibration dampening and quiet operation
Specifications
- SKU: C133
- Brand: Regal Rexnord – Marathon
- Horsepower: 1/2 HP
- Voltage: 115/230V AC
- Phase: Single Phase
- Speed: 1725 RPM
- Amperage: 8.2A (115V) / 4.1A (230V)
- Frame: NEMA 48
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Resilient Base
Applications
The Marathon C133 motor is well suited for use in fans, blowers, pumps, compressors, and a variety of HVAC and light commercial equipment where a reliable, single-phase motor is required.
