Description

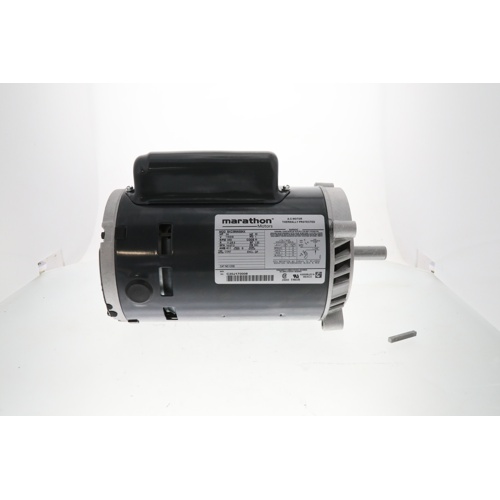

The Regal Rexnord Marathon C332 is a heavy-duty, single-phase general purpose motor engineered for demanding HVAC and industrial applications. With a 3/4 horsepower output and a high-speed 3450 RPM rating, this motor delivers consistent, reliable performance across a wide range of equipment installations.
Key Features
- 3/4 HP output for dependable power in HVAC and light industrial applications
- Dual voltage rating of 115/230Vac for flexible installation compatibility
- Single-phase power configuration — ideal for residential and light commercial use
- 3450 RPM operating speed for high-efficiency performance
- Dual amperage draw: 11.2A at 115V / 5.6A at 230V
- 56C frame size — industry-standard mounting for easy drop-in replacement
- Open Drip Proof (ODP) enclosure protects against dripping liquids in non-hazardous environments
- Locked/Ball Bearing construction for reduced friction, longer service life, and minimal maintenance
Specifications
- Brand: Regal Rexnord – Marathon
- Model / SKU: C332
- Horsepower: 3/4 HP
- Voltage: 115/230Vac
- Phase: Single Phase
- Speed: 3450 RPM
- Amperage: 11.2A (115V) / 5.6A (230V)
- Frame Size: 56C
- Enclosure Type: Open Drip Proof (ODP)
- Bearing Type: Locked/Ball Bearing
Applications
- HVAC blower and fan assemblies
- Pumps and compressors
- General purpose industrial equipment
- Replacement motor for 56C frame installations
Backed by Regal Rexnord’s Marathon brand heritage, the C332 motor is built to meet the rigorous demands of professional HVAC technicians and contractors. Its standard 56C frame ensures broad compatibility with existing equipment, making it a reliable choice for both new installations and service replacements.
