Description

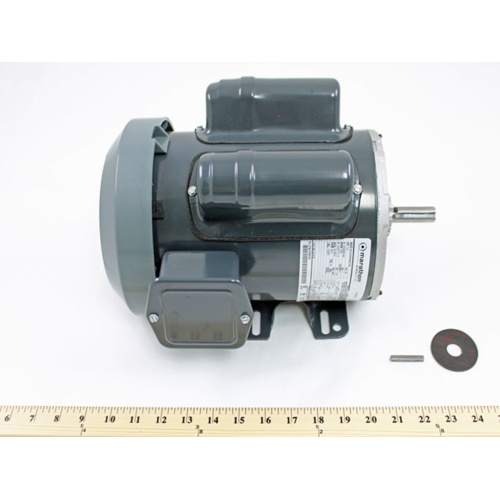

The Regal Rexnord Marathon G1376 is a heavy-duty, totally enclosed fan cooled (TEFC) general purpose motor engineered for reliable performance in demanding HVAC and industrial applications. With a 1-1/2 HP output rating and a robust 56H frame, this motor is a direct-fit solution for a wide range of equipment including fans, blowers, pumps, and compressors.
The dual-voltage design (115/208-230V AC) provides installation flexibility across a variety of electrical service configurations, while the single-phase power requirement makes it ideal for residential and light commercial environments. Operating at 1725 RPM, this motor delivers consistent, smooth power output suited to continuous-duty applications.
The totally enclosed fan cooled (TEFC) enclosure protects internal windings from dust, moisture, and airborne contaminants — extending motor life and reducing maintenance requirements in challenging installation environments.
Key Specifications
- Horsepower: 1-1/2 HP
- Voltage: 115/208-230V AC
- Phase: Single Phase
- Speed: 1725 RPM
- Amperage: 14.5A (115V) / 7.1–7.3A (208-230V)
- Frame Size: 56H
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Brand: Regal Rexnord / Marathon
- Model / SKU: G1376
Features & Benefits
- Dual-voltage capability (115/208-230V) for flexible installation
- TEFC enclosure shields motor from dust, moisture, and debris
- 56H frame for broad OEM and replacement compatibility
- 1725 RPM operating speed for smooth, continuous-duty performance
- Single-phase power — ideal for residential and light commercial use
- Built by Regal Rexnord / Marathon, a trusted name in motor technology
Typical Applications
- HVAC blowers and air handlers
- Exhaust and supply fans
- Pumps and compressors
- General industrial and commercial equipment
