Description

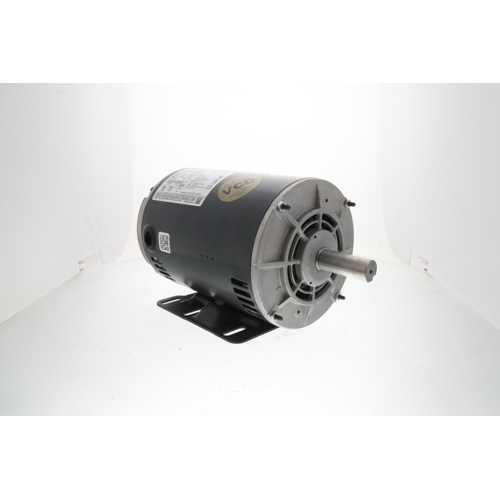

The Marathon K069 is a heavy-duty general purpose motor engineered for dependable performance across a wide range of HVAC and industrial applications. Built on the versatile 56HZ frame, this motor delivers 2 horsepower at 1800 RPM, making it an ideal choice for fans, blowers, pumps, and other driven equipment where consistent, efficient power is essential.
Key Specifications
- Brand: Regal Rexnord – Marathon
- SKU: K069
- Horsepower: 2 HP
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Speed: 1800 RPM
- Amperage: 6.2-6.2/3.1 Amps
- Frame Size: 56HZ
- Enclosure: Open Drip Proof (ODP)
- Mounting: Rigid
Motor Design & Construction
The Open Drip Proof (ODP) enclosure allows air to circulate through the motor windings for efficient cooling while protecting internal components from dripping liquids falling at angles up to 15 degrees from vertical. The rigid mounting base provides a solid, vibration-resistant installation suitable for direct-coupled or belt-driven loads.
Electrical Flexibility
Dual-voltage capability (208-230/460 VAC) allows this motor to be wired for either low-voltage or high-voltage three-phase power, giving installers maximum flexibility across different facility electrical configurations. The 56HZ frame is a widely standardized footprint, simplifying replacement and retrofit installations.
Typical Applications
- HVAC blowers and air handlers
- Centrifugal and inline fans
- Pumps and compressors
- Commercial and light industrial equipment
- Belt-driven and direct-coupled loads
Why Choose Marathon by Regal Rexnord?
Marathon, a Regal Rexnord brand, is a trusted name in electric motor manufacturing, known for quality windings, robust construction, and long service life. The K069 continues that tradition, offering a reliable, efficient solution for contractors and facility managers who demand consistent uptime and easy serviceability.
