Description

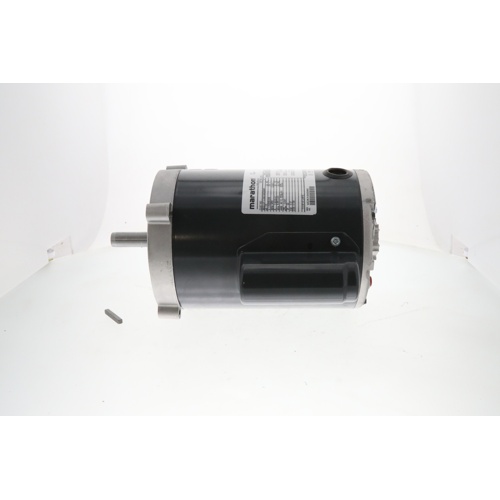

The Regal Rexnord Marathon O213 is a dependable general-purpose motor engineered for demanding HVAC and light industrial applications. Built around a rugged 56C frame with a C-Face footless configuration, this motor installs easily on pumps, fans, blowers, and other direct-coupled equipment without the need for a base mount — saving installation time and reducing footprint.
Electrical Specifications
- Horsepower: 1/2 HP
- Voltage: 115/208-230 VAC
- Phase: Single Phase
- Amperage: 7.4 A (115V) / 3.5–3.7 A (208-230V)
- Speed: 3600 RPM
Mechanical Specifications
- Frame Size: 56C
- Mounting: C-Face Footless
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
Key Features & Benefits
- Open Drip Proof (ODP) enclosure protects internal components from dripping liquids in non-hazardous environments
- Ball bearings provide smooth, low-friction operation and extended service life
- C-Face footless design allows direct coupling to pumps, blowers, and fans for compact, versatile installation
- Dual-voltage capability (115/208-230V) offers flexibility across a wide range of electrical systems
- 3600 RPM synchronous speed suits high-speed direct-drive applications
- 56C NEMA frame ensures dimensional compatibility with standard replacement motor applications
- Regal Rexnord Marathon quality construction for reliable, long-term performance
Typical Applications
- HVAC fans and blowers
- Pumps and circulators
- Light industrial equipment
- Direct-drive compressor applications
