Description

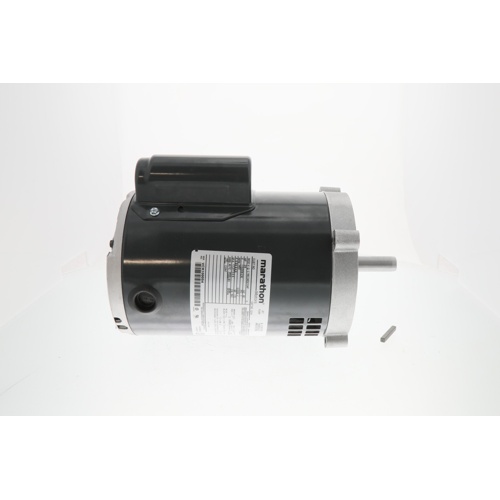

The Regal Rexnord Marathon O214 is a heavy-duty general purpose motor engineered for demanding HVAC and industrial applications. With a 3/4 horsepower output and a synchronous speed of 3600 RPM, this single-phase motor delivers consistent, high-speed performance where it counts. Its dual-voltage design (115/208-230Vac) provides flexible installation across a wide range of electrical service configurations, making it a versatile choice for contractors and technicians.
The 56C frame with C-Face footless mounting allows direct coupling to pumps, fans, compressors, and other driven equipment without the need for a separate base or coupling adapter. The Open Drip Proof (ODP) enclosure protects internal components from dripping liquids in non-hazardous environments, while precision ball bearings ensure smooth, low-friction operation and extended service life.
Key Specifications
- Horsepower: 3/4 HP
- Voltage: 115/208-230Vac
- Phase: Single Phase
- Speed: 3600 RPM
- Amperage: 9.8A (115V) / 4.8–4.9A (208-230V)
- Frame Size: 56C
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: C-Face Footless
Features & Benefits
- Dual-voltage capability (115/208-230Vac) for flexible field installation
- C-Face footless design enables direct-drive mounting to pumps, blowers, and fans
- Ball bearings provide long-lasting, low-maintenance operation
- Open Drip Proof enclosure suitable for indoor and sheltered outdoor installations
- 3600 RPM synchronous speed ideal for high-speed direct-drive applications
- 56C NEMA frame ensures cross-compatibility with standard equipment footprints
- Regal Rexnord Marathon quality construction for dependable, continuous-duty performance
Typical Applications
- HVAC air handlers and blower assemblies
- Circulating pumps and hydronic systems
- Compressor and fan drive applications
- Commercial and light industrial equipment
