Description

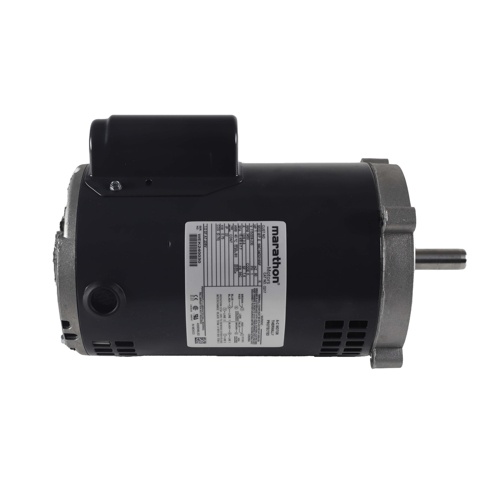

The Regal Rexnord Marathon O217 is a high-performance general purpose motor engineered for demanding HVAC and industrial applications. Built on the industry-standard 56C frame, this C-Face footless design offers versatile mounting flexibility for direct-coupled loads such as pumps, compressors, and fans.
Key Specifications
- Horsepower: 1 HP
- Voltage: 115/208-230V AC
- Phase: Single Phase
- Speed: 3600 RPM
- Amperage: 12A (115V) / 6.2–6A (208-230V)
- Frame Size: 56C
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: C-Face Footless
Design & Construction
The Open Drip Proof (ODP) enclosure protects internal components from dripping liquids and falling debris, making it well-suited for indoor mechanical rooms and equipment rooms with controlled environments. Ball bearings provide smooth, low-friction operation and extended service life under continuous-duty conditions. The dual-voltage capability (115V or 208-230V) simplifies installation across a wide range of electrical service configurations.
C-Face Footless Mounting
The C-Face footless configuration allows for direct face mounting to pumps, blowers, and other driven equipment without the need for a separate base or coupling alignment. This design reduces installation time and ensures precise shaft alignment for optimal power transmission efficiency.
Applications
- HVAC pumps and circulators
- Air compressors
- Fans and blowers
- Light industrial equipment
- Commercial refrigeration systems
Why Choose Marathon by Regal Rexnord?
Marathon Electric, a Regal Rexnord brand, is a trusted name in motor technology with decades of proven reliability in HVAC and industrial markets. The O217 delivers consistent performance, energy-efficient operation, and long service intervals — minimizing downtime and total cost of ownership.
