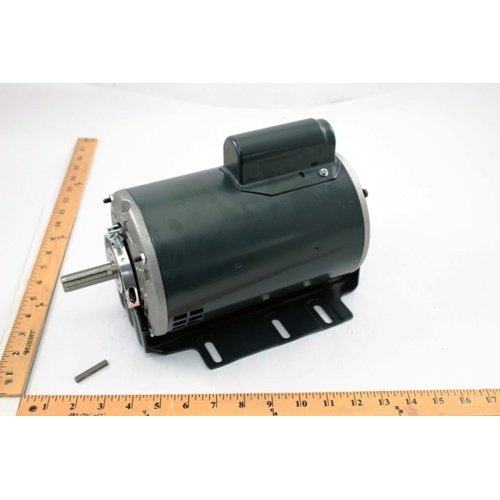

Regal Rexnord Marathon S115 General Purpose Motor Overview
The Regal Rexnord Marathon S115 is a dependable single-phase general purpose motor engineered for demanding HVAC and industrial applications. Rated at 3/4 horsepower and running at 1800 RPM, this motor delivers consistent, efficient performance across a wide range of equipment including fans, blowers, pumps, and compressors. Its dual-voltage capability (115/230V AC) provides installation flexibility to match virtually any single-phase power supply configuration.
Key Specifications
- Horsepower: 3/4 HP
- Voltage: 115/230V AC (dual voltage)
- Phase: Single Phase
- Speed: 1800 RPM
- Amperage: 10.4A (115V) / 5.2A (230V)
- Frame Size: 56 (NEMA standard)
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Resilient Base
- SKU: S115
Design & Construction
Built to NEMA 56 frame standards, the Marathon S115 ensures straightforward drop-in replacement compatibility with existing equipment. The Open Drip Proof (ODP) enclosure protects internal windings from dripping liquids and falling debris in non-hazardous indoor environments, while still allowing adequate airflow for efficient motor cooling. Precision ball bearings provide smooth, low-friction operation and extended service life, reducing maintenance intervals and downtime.
Resilient Base Mounting
The resilient base mounting system isolates vibration from the driven load and the motor frame, minimizing noise transmission and protecting connected equipment. This makes the S115 an ideal choice for applications where vibration control and quiet operation are priorities, such as air handlers, fan coil units, and HVAC blower assemblies.
Dual-Voltage Flexibility
The 115/230V AC dual-voltage design allows technicians to wire this motor for either standard residential or light commercial power supplies without requiring a separate motor for each application. Simply configure the motor leads to match the available supply voltage for a fast, code-compliant installation.
Applications
- HVAC air handlers and blower assemblies
- Fans and ventilation equipment
- Pumps and hydronic systems
- Light industrial machinery
- Commercial refrigeration fans
Why Choose the Marathon S115?
Regal Rexnord’s Marathon brand has a long-standing reputation for producing rugged, high-quality motors built to withstand the rigors of HVAC and industrial service. The S115 combines proven motor technology with a versatile design to deliver reliable performance, easy installation, and long service life — making it a trusted choice for contractors and technicians.
