Description

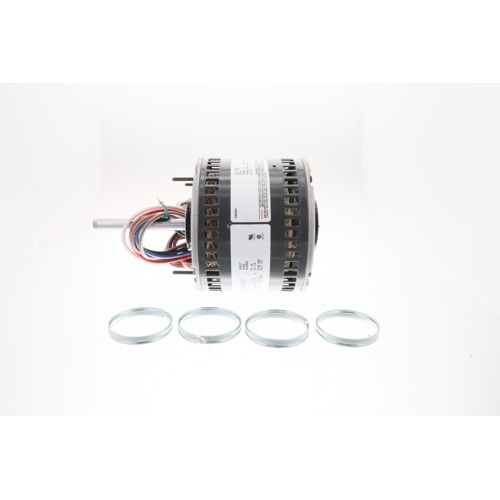

The Regal Rexnord Marathon X013 is a heavy-duty blower motor engineered for dependable performance in demanding HVAC air-handling applications. Featuring a resilient base with extended studs for flexible mounting configurations, this motor is built to deliver consistent airflow output across a wide range of blower and air-handler installations.
Motor Specifications
- Horsepower: 1/4 HP
- Voltage: 115 VAC
- Phase: Single Phase
- Speed: 1625 RPM
- Amperage: 2.9 Amps
- Frame Size: 48Z
- Enclosure: Open Air-Over (OAO)
- Bearing Type: Ball Bearing
- Mounting: Resilient Base with Extended Studs
Key Features & Benefits
- Ball bearing construction provides long service life and reduced maintenance requirements
- Open air-over (OAO) enclosure is designed for use in the airstream, keeping the motor cool during continuous operation
- Resilient base with extended studs allows for versatile, vibration-dampening mounting in a variety of blower assemblies
- 48Z frame size ensures broad compatibility with standard HVAC blower and air-handler housings
- Single-phase, 115VAC design is compatible with standard residential and light commercial power supplies
- Manufactured by Regal Rexnord under the trusted Marathon brand, known for quality and reliability in the HVAC industry
Typical Applications
- Residential and light commercial air handlers
- Furnace blower assemblies
- Fan coil units
- Evaporator blower systems
