Description

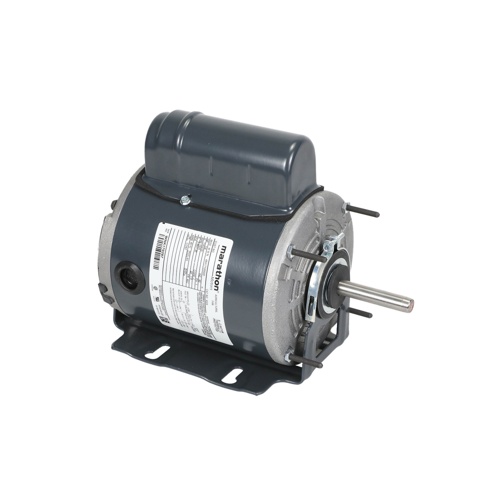

The Regal Rexnord Marathon X024 is a rugged, single-phase condenser fan motor engineered for demanding HVAC applications where dependable airflow and long service life are essential. Built around a 48Z frame and featuring a Totally Enclosed Air Over (TEAO) design, this motor is purpose-built to withstand the harsh operating environments found in outdoor condensing units and evaporative cooling equipment.
Key Specifications
- Horsepower: 1/4 HP
- Voltage: 115/230V AC
- Phase: Single Phase
- Speed: 1625 RPM
- Amperage: 2.95A (115V) / 1.45A (230V)
- Frame Size: 48Z
- Enclosure: Totally Enclosed Air Over (TEAO)
- Mounting: Resilient Base with Extended Studs
Design & Construction
The TEAO enclosure protects internal windings from dust, debris, and moisture — making this motor an ideal choice for condenser fan and evaporative cooler applications where the motor is cooled by the airstream it drives rather than an internal fan. The 48Z frame ensures broad OEM and replacement compatibility across a wide range of HVAC equipment.
Mounting & Versatility
The resilient base with extended studs provides vibration-dampening support and simplified installation, reducing noise transmission to the equipment structure. Dual-voltage capability (115/230V AC) allows this motor to be wired for either standard residential or light commercial power supplies, maximizing flexibility across job sites.
Why Choose the Marathon X024?
- Totally Enclosed Air Over design for outdoor and exposed-air applications
- Dual-voltage wiring flexibility — 115V or 230V single phase
- 48Z frame for wide OEM replacement compatibility
- Resilient base with extended studs for vibration isolation and easy mounting
- 1625 RPM operating speed optimized for condenser fan duty
- Trusted Regal Rexnord / Marathon quality and reliability
