Description

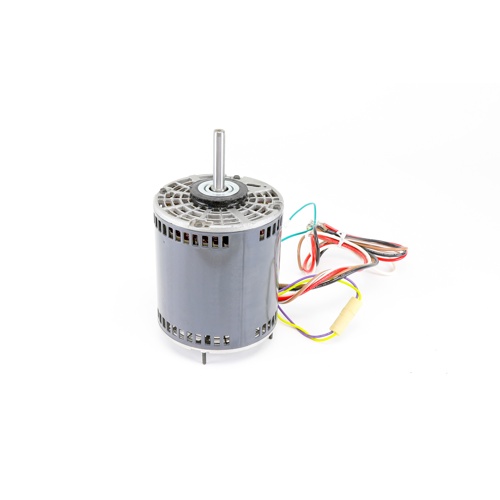

The Regal Rexnord Marathon X211 is a heavy-duty blower motor engineered for reliable performance in residential and light commercial HVAC air-handling applications. Built around a rugged 48Y frame with an Open Drip Proof (ODP) enclosure, this motor delivers consistent airflow across a wide range of blower and fan assemblies.
Key Specifications
- Horsepower: 1 HP
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 1625 RPM
- Full Load Amps: 6.2 A
- Frame Size: 48Y
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting Style: Round Belly Band
Design & Construction
The X211 features precision ball bearings for extended service life and reduced maintenance, making it well suited for continuous-duty blower applications. The Open Drip Proof enclosure protects internal windings from dripping liquids while allowing adequate airflow for motor cooling. The round belly band mounting design simplifies installation and replacement in a variety of air handler and furnace blower configurations.
Application Highlights
- Residential and light commercial air handlers
- Furnace blower replacement applications
- Compatible with 48Y frame blower assemblies
- Suitable for single-phase 208–230V electrical systems
Why Choose Regal Rexnord Marathon?
Regal Rexnord’s Marathon motor line is a trusted name in HVAC motor replacement, known for consistent quality, broad OEM compatibility, and long service life. The X211 is a direct-drive blower motor designed to meet the demands of everyday HVAC operation.
