Description

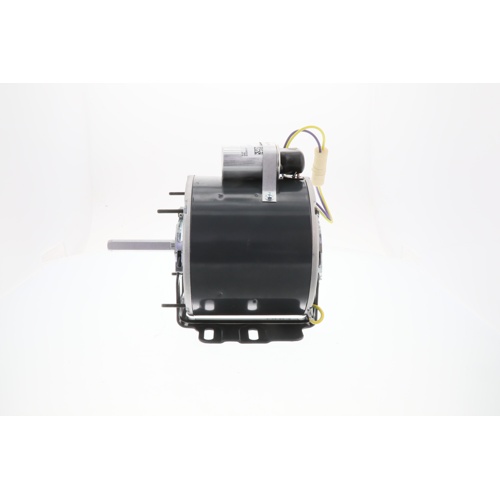

The Regal Rexnord Marathon X302 is a dependable, single-phase blower motor engineered for demanding HVAC applications. Built around a rugged 48Z frame and featuring a Totally Enclosed Air Over (TEAO) enclosure, this motor delivers consistent airflow performance while resisting dust, debris, and moisture ingress — making it well-suited for furnace blower assemblies, air handlers, and fan coil units.
The resilient base with extended studs provides flexible, vibration-dampening mounting that helps reduce noise transmission and simplifies installation across a wide range of equipment configurations.
Key Specifications
- Model: X302
- Horsepower: 1/6 HP
- Voltage: 115VAC
- Phase: Single Phase
- Speed: 1075 RPM
- Amperage: 3 Amps
- Frame Size: 48Z
- Enclosure: Totally Enclosed Air Over (TEAO)
- Mounting: Resilient Base with Extended Studs
Features & Benefits
- Totally Enclosed Air Over (TEAO) enclosure protects internal windings from airborne contaminants
- 48Z frame ensures broad OEM and aftermarket compatibility
- Resilient base with extended studs reduces vibration and simplifies drop-in replacement
- 1075 RPM operating speed ideal for multi-speed blower applications
- 3-amp draw supports efficient, low-energy operation at 115VAC
- Single-phase design compatible with standard residential and light commercial power supplies
- Regal Rexnord Marathon quality construction for long service life
Typical Applications
- Furnace blower assemblies
- Air handler units
- Fan coil units
- Residential and light commercial HVAC systems
