Description

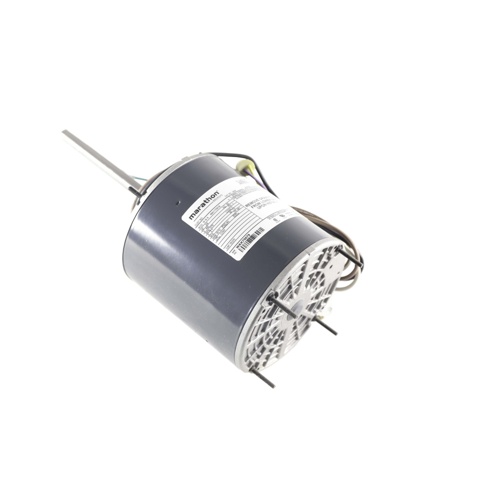

The Regal Rexnord Marathon X459 is a heavy-duty condenser fan motor engineered for reliable, long-life performance in demanding outdoor HVAC applications. Built to handle the rigors of condenser section duty, this motor delivers consistent airflow management across a wide range of commercial and residential cooling equipment.
Key Specifications
- Horsepower: 3/4 HP
- Voltage: 460 Vac
- Phase: Single Phase
- Speed: 1075 RPM
- Full Load Amps: 2.1 A
- Frame Size: 48Y
- Enclosure: Totally Enclosed Air Over (TEAO)
- Mounting: Extended Studs – Footless
Design & Construction
The Totally Enclosed Air Over (TEAO) enclosure protects internal windings from dust, debris, and moisture — making this motor well-suited for outdoor condenser applications where the motor is cooled by the airstream it drives. The 48Y frame ensures broad cross-compatibility with standard OEM mounting configurations, while the extended stud, footless design simplifies direct-drive condenser fan installations.
Performance & Reliability
Operating at 1075 RPM, the X459 delivers the low-speed torque characteristics ideal for condenser fan blade operation, helping maintain proper system static pressure and heat rejection. At 2.1 amps full load draw on a 460 Vac single-phase supply, this motor is well-matched for commercial condensing units and rooftop equipment.
Application
- Commercial and residential condenser fan assemblies
- Rooftop HVAC units
- Air-cooled condensing units
- Direct-drive condenser fan replacement
Why Choose the Marathon X459?
Regal Rexnord’s Marathon brand is a trusted name in HVAC motor manufacturing, known for quality windings, durable construction, and consistent performance. The X459 is a reliable drop-in replacement or new-installation choice for technicians who demand dependable condenser motor performance season after season.
