Description

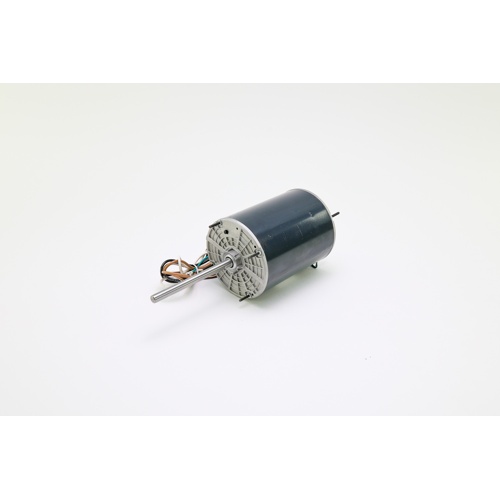

The Regal Rexnord Marathon X462 is a heavy-duty condenser fan motor engineered for dependable performance in demanding HVAC applications. Featuring a Totally Enclosed Not Ventilated (TENV) design, this motor is built to withstand the harsh outdoor environments typical of air conditioning and refrigeration condenser units, keeping internal components fully protected from moisture, dust, and debris without relying on ventilation airflow.
Key Specifications
- Horsepower: 1 HP
- Voltage: 460 VAC
- Phase: Single Phase
- Speed: 1075 RPM
- Full Load Amps: 3.4 Amps
- Frame Size: 48Y
- Enclosure: Totally Enclosed Not Ventilated (TENV)
- Mounting Style: Round (belly-band)
- SKU / Model: X462
Motor Design & Construction
- TENV enclosure protects windings and bearings from outdoor elements without requiring airflow for cooling
- 48Y frame provides a standardized, versatile mounting footprint compatible with a wide range of condenser unit configurations
- Round (belly-band) mounting style simplifies installation and replacement in existing motor mounts
- Designed for low-speed condenser fan duty at 1075 RPM, optimizing airflow efficiency across condenser coils
- Single-phase operation at 460 VAC suits commercial and light industrial HVAC systems
Application & Benefits
- Ideal for replacement or new installation in rooftop units, split-system condensers, and packaged HVAC equipment
- Low RPM rating delivers quiet, efficient condenser fan operation
- Regal Rexnord Marathon quality ensures long service life and consistent performance
- TENV construction minimizes maintenance requirements in outdoor or semi-exposed installations
- 3.4-amp draw supports energy-efficient operation at rated load
Trust the Regal Rexnord Marathon X462 to deliver reliable condenser fan performance season after season. Order today from Jackson Systems for fast shipping and expert HVAC supply support.
