Description

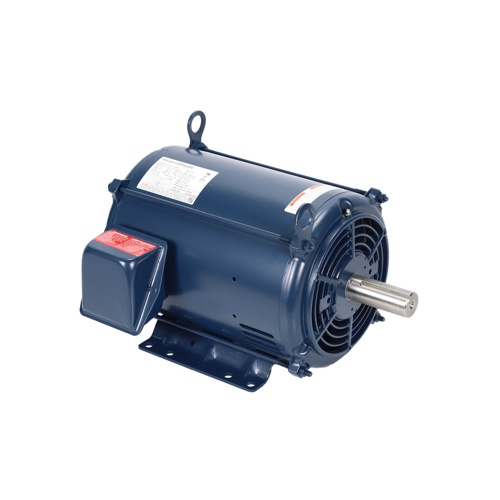

The Regal Rexnord Marathon Y415 is a heavy-duty, general-purpose electric motor engineered for reliable performance in commercial and industrial HVAC applications. With a robust 215T frame and Open Drip Proof (ODP) enclosure, this motor delivers consistent power across demanding environments while maintaining motor longevity and serviceability.
Key Features
- 5 HP output rating for high-demand HVAC and mechanical loads
- 460 VAC input voltage — compatible with standard three-phase commercial power
- Three-phase design for smooth, efficient power delivery and reduced electrical stress
- 1800 RPM synchronous speed for optimal torque and airflow performance
- 2-speed capability for flexible load matching and energy savings
- 6.5 Amp full-load current draw
- 215T NEMA frame size for easy drop-in replacement and standardized mounting
- Open Drip Proof (ODP) enclosure protects against dripping liquids in non-hazardous environments
- Ball bearing construction for reduced friction, lower maintenance, and extended service life
- Rigid mount configuration for secure, vibration-resistant installation
Specifications
- Brand: Regal Rexnord / Marathon
- Model: Y415
- Horsepower: 5 HP
- Voltage: 460 VAC
- Phase: Three-Phase
- Speed: 1800 RPM
- Number of Speeds: 2
- Full Load Amps: 6.5 A
- Frame: 215T (NEMA Standard)
- Enclosure: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Rigid
Applications
- Commercial HVAC blower and fan systems
- Air handling units (AHUs)
- Cooling towers and condenser fan applications
- Industrial pumps and compressors
- Multi-speed ventilation systems requiring variable airflow
The Marathon Y415 is built to Regal Rexnord’s exacting standards, making it a trusted choice for HVAC contractors and mechanical engineers who need a dependable, drop-in motor solution. The standardized 215T NEMA frame ensures broad compatibility with existing equipment, while the 2-speed functionality supports energy-efficient operation across varying load conditions.
