Description

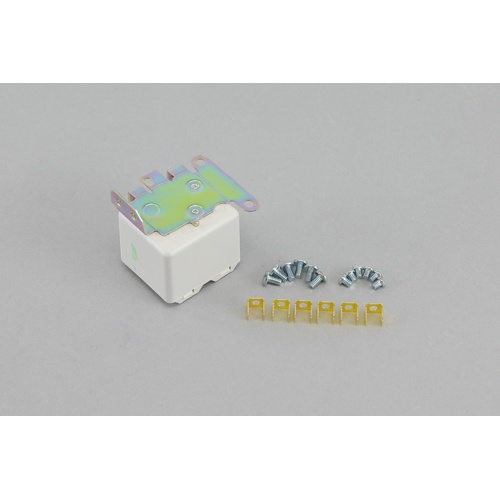

The Mars 19008 is a precision-engineered potential relay designed to assist single-phase compressor motors during startup. By sensing back-EMF voltage generated by the start winding, this relay quickly removes the start capacitor from the circuit once the motor reaches operating speed — protecting both the capacitor and the compressor from damage.
How It Works
Potential relays operate by monitoring the voltage across the start winding. When the motor accelerates and the back-EMF rises to the relay’s pickup voltage (336V), the normally closed contacts open to drop the start capacitor out of the circuit. The relay remains open until the motor stops and voltage falls to the dropout voltage (69V), at which point the contacts close and the relay is ready for the next start cycle.
Key Specifications
- Pickup Voltage: 336V
- Dropout Voltage: 69V
- Application: Single-phase compressor motor starting
- Relay Type: Potential (back-EMF sensing)
- Brand: Mars (Motor & Armature)
- SKU: 19008
Features & Benefits
- Removes start capacitor at the correct moment to prevent overheating and capacitor failure
- Normally closed contacts ensure the start circuit is ready on every cycle
- Compact, industry-standard design for easy installation and replacement
- Compatible with a wide range of single-phase HVAC/R compressors
- Reliable operation in demanding commercial and residential refrigeration and air conditioning applications
Typical Applications
- Air conditioning compressors
- Refrigeration compressors
- Heat pump compressors
- Hard-start kit installations
The Mars 19008 potential relay is a trusted solution for HVAC/R technicians needing a dependable, drop-in replacement or new-installation potential relay. Its clearly rated pickup and dropout voltages make selection straightforward, ensuring proper compressor protection and extended equipment life.
