Description

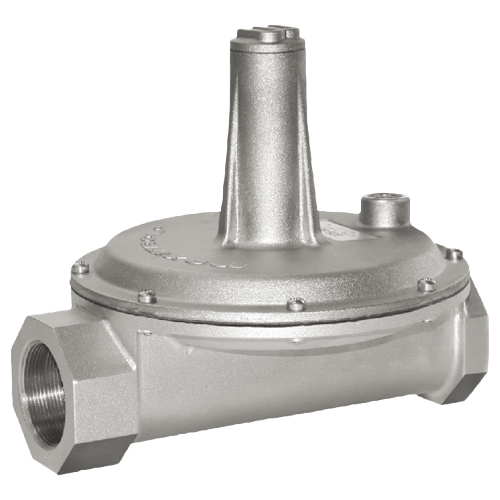

The Maxitrol 325‑9L210E is a high-capacity lever‑acting line pressure regulator designed for gas systems operating up to 5 psi. Built to the 325‑L series standard, it includes a certified Over‑Pressure Device (OPD) for added safety, making it suitable for commercial, industrial, or demanding residential applications. With a maximum throughput of 2,250,000 BTU/hr, it’s engineered to manage heavy loads while delivering reliable downstream pressure control.
Features:
- 1 1/2″ NPT
- 5 PSI Max Inlet Pressure
- 7-11″wc Outlet Pressure,
- 2,250,000 btu/hr Max Capacity
- Lever Acting Design with OPD
- Certified Line Pressure Gas Regulator
