Description

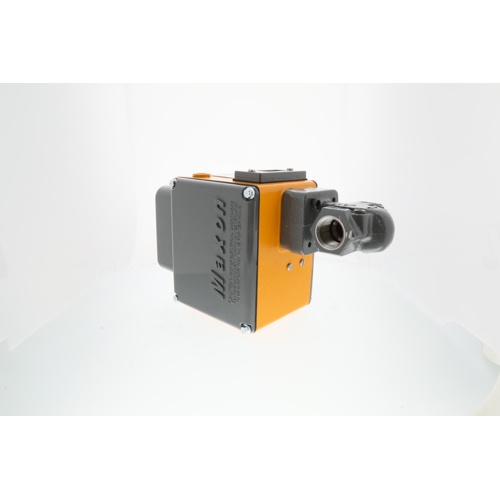

The Maxon 100SMM11AA11BA-1A0 is a general-purpose, solenoid-operated gas shutoff valve engineered for reliable safety and precise flow control in commercial and industrial gas-fired systems. Featuring a robust cast iron body and Buna body O-rings and bumper, this valve is built to withstand demanding operating environments while maintaining a secure, leak-tight seal.
Key Features
- 1″ ANSI threaded connections for straightforward installation into standard gas piping systems
- Standard port flow capacity for consistent, dependable gas delivery
- Manual-reset operation ensures the valve must be deliberately re-energized after a shutoff event, enhancing safety compliance
- 2-way, normally closed (NC) configuration — valve defaults to the closed (safe) position when de-energized
- General-purpose design suitable for a wide range of gas-fired heating and combustion applications
- Cast iron body construction for durability and long service life
- Buna body O-rings and bumper provide reliable sealing and vibration resistance
- Internal Trim Package 1 for optimized internal flow and sealing performance
- Standard handle included for manual operation and visual position indication
Electrical Specifications
- Solenoid voltage: 115Vac, 60Hz
Connection & Body
- Connection type: ANSI threaded, 1″ pipe size
- Body material: Cast iron
- Seals/O-rings: Buna (NBR)
Applications
- Commercial and industrial gas-fired burners and combustion systems
- Boilers, furnaces, and process heating equipment
- Safety shutoff applications requiring manual-reset after fault conditions
- General-purpose gas control in HVAC and mechanical systems
The Maxon 100SMM11AA11BA-1A0 is backed by Maxon’s reputation for precision combustion control components, making it a trusted choice for contractors and engineers who demand safety-rated, field-proven gas valve solutions.
