Description

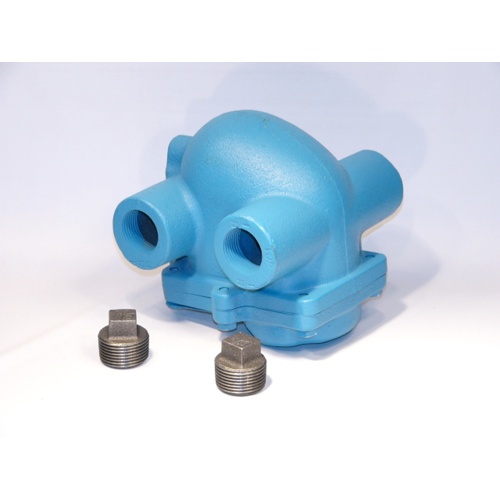

The Mepco (Dunham Bush) ML9331 is a 1-inch Float & Thermostatic (F&T) steam trap engineered for dependable condensate removal in commercial and industrial steam heating systems. Built on the proven 44-415A design platform, this trap combines a float mechanism for continuous condensate discharge with a thermostatic air vent to purge non-condensable gases — ensuring maximum system efficiency and heat transfer performance.
How It Works
The float element responds instantly to condensate levels, opening the discharge valve as liquid accumulates and closing it to prevent live steam loss. The integral thermostatic element automatically vents air and CO₂ at startup and during operation, eliminating air binding and promoting faster system warm-up.
Key Features
- 1-inch pipe connection for high-capacity condensate handling
- Rated for 15 PSI steam pressure service
- Model series: 44-415A (Float & Thermostatic design)
- Continuous condensate discharge via float-operated valve
- Integral thermostatic air vent eliminates air and non-condensable gases
- Durable cast iron or steel body construction for long service life
- Suitable for steam heating coils, unit heaters, heat exchangers, and process equipment
Applications
- Commercial and industrial steam heating systems
- Steam coils and air handling units
- Unit heaters and convectors
- Heat exchangers and process heating equipment
- Low-pressure steam distribution mains
Product Specifications
- Brand: Mepco (Dunham Bush)
- SKU: ML9331
- Model: 44-415A
- Connection Size: 1 inch
- Trap Type: Float & Thermostatic (F&T)
- Maximum Allowable Pressure (MAP): 15 PSI
