Description

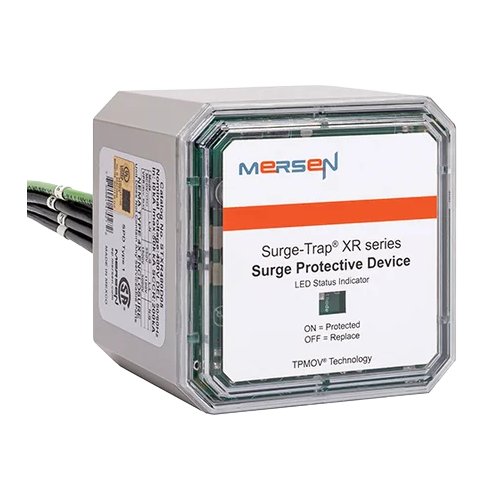

Protect your electrical systems with the Mersen Surge-Trap STXR480D05, a UL Listed Type 1 Surge Protective Device built to UL1449 5th Edition standards and designed as an excellent replacement for outdated surge arrestors. Featuring advanced TPMOV® technology, this SPD delivers one of the safest surge protection solutions available, with a 50 kA surge current rating and 3000V L-L voltage protection rating to safeguard your equipment from damaging voltage spikes. Its compact design offers flexible line or load installation, making it ideal for both branch panel and individual equipment protection. A built-in LED indication system provides at-a-glance status monitoring, while the rugged NEMA 4X non-metallic polycarbonate enclosure ensures long-lasting durability in demanding environments. Backed by Surge-Trap’s trusted engineering, the STXR series is a reliable, code-compliant choice for modern surge protection needs.
Key Features:
- UL1449 5th Edition Listed – Type 1 SPD compliant with the latest industry safety standards
- TPMOV® Technology – One of the safest surge protection technologies available
- 50 kA Surge Current Rating – Robust protection against damaging electrical surges
- 3000V L-L VPR / 1100V L-L MCOV – High-capacity voltage protection for 480V 3-phase delta systems
- LED Indication System – Easy visual status monitoring
- Flexible Installation – Supports line or load installation for branch panel or equipment-level protection
- NEMA 4X Non-Metallic Enclosure – Durable polycarbonate housing built to withstand harsh conditions
- Compact Panel-Mount Design – Space-saving footprint at 3.35″W x 3.25″L x 3.35″H
Specifications:
- UL SPD Type: Type 1
- Format: STXR
- Power Type: AC
- Frequency: 50/60 Hz
- Nominal Discharge Current (In, 8/20): 10 kA
- System Configuration: 3-Phase Delta
- Indication System: Yes (LED)
- Enclosure: NEMA 4X Non-Metallic, Polycarbonate Housing
- Installation: Panel Mount
- MCOV L-G: 550V / MCOV L-L: 1100V
- VPR L-G: 1800V / VPR L-L: 3000V
- Product Dimensions: 3.35″W x 3.25″L x 3.35″H
- Product Weight: 1.5 lb
- RoHS Compliant: Yes
