Description

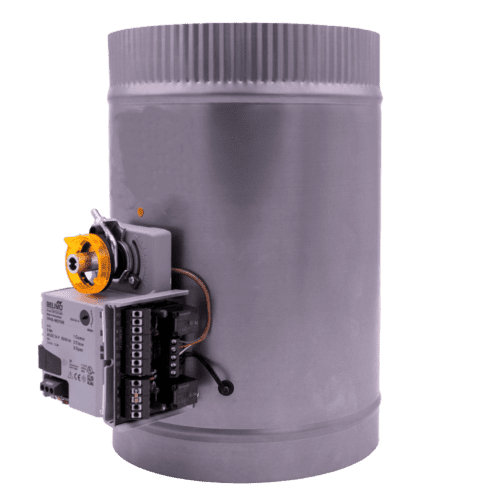

The iO HVAC Controls ZD-XX is a heavy-duty commercial round zone control damper assembly that includes a damper, modulating actuator, duct temperature sensor, and actuator control board in a single unit. This 3-wire modulating damper provides application flexibility with minimum position adjustment, and is designed for use as part of the Z2000 zone panel system when paired with a Z2000-T, P+I zone thermostat. The ZD-XX features 22-gauge steel shell and 20-gauge steel blade construction with a 1/2″ aluminum shaft, nylon bushings, and airtight blade seals to minimize leakage. The modulating actuator operates on 24V, 2.5VA power with a 90-second timing cycle and 45 lb-in of torque. The damper handles airflow up to 4,000 CFM with a maximum static pressure of 2 inches w.c. and maximum velocity of 2,000 fpm, and meets Class 2 leakage rating (10 cfm/ft² at 1″ w.g.). Available in standard sizes from 4″ to 20″.
Features:
- Heavy-duty commercial modulating zone damper for round ductwork
- Includes damper, modulating actuator, duct temperature sensor, and actuator control board
- 3-wire design with minimum position adjustment for application flexibility
- Compatible with Z2000 zone panel system (requires Z2000-T, P+I zone thermostat)
- 22-gauge steel shell, 20-gauge steel blade, 1/2″ aluminum shaft
- Nylon bushings and airtight blade seals to minimize leakage
- Handles up to 4,000 CFM, max static pressure 2″ w.c., max velocity 2,000 fpm
- Class 2 leakage rating: 10 cfm/ft² @ 1″ w.g.
- Available in standard sizes from 4″ to 20″
Specifications:
- Dimensions: 4″ to 20″ (standard sizes)
- Construction: 22-gauge steel shell, 20-gauge steel blade, 1/2″ aluminum shaft, nylon bushings, airtight blade seals
- Electrical: 24V, 2.5VA, 3-wire, 90-second timing, 45 lb-in torque
- Max Static Pressure: 2″ w.c.
- Max Velocity: 2,000 fpm
- CFM Range: 0–4,000 CFM
- Leakage Class: Class 2 — 10 cfm/ft² @ 1″ w.g. (3 cmm/m² @ .25 kPa)
- Required System: Z2000 zone panel with Z2000-T, P+I zone thermostat
