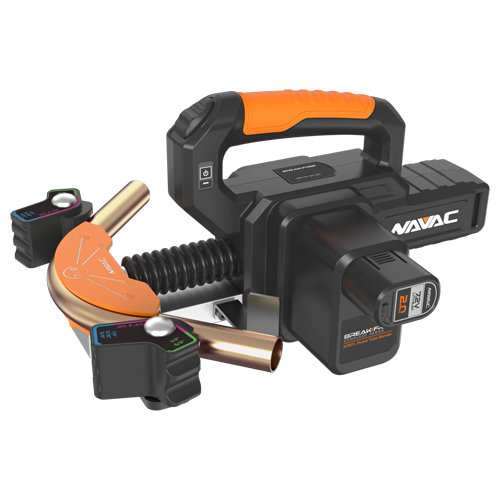

NAVAC NTB7L2 BreakFree Cordless Power Tube Bender, 7 Sizes

Description

Bend copper tubing effortlessly with the NAVAC NTB7L2 BreakFree Power Tube Bender — the battery-driven, 2023 Dealer Design Awards Gold winner engineered to take the strain out of one of HVAC’s most repetitive tasks. Designed for installers working on mini-split, VRF, and refrigeration line sets, the NTB7L2 delivers clean, kink-free bends on seven common tubing sizes without the fatigue of manual levered benders.

At the heart of the tool is a patent-pending 7-in-1 tubing size selector that lets technicians switch between 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, and 7/8″ OD soft copper tubing in seconds — no swapping dies, no fumbling through a tool bag. Push and hold the single operation button for an automatic 90° bend, or release early to dial in any custom angle the job calls for. When the bend is complete, the easy-release baffle and automatic tube release free the tubing instantly.

Powered by the NBF3 7.2V 2.0Ah lithium-ion battery with a Type-C charging port, the NTB7L2 delivers over 100 bends per charge and recharges fully in just 45 minutes, keeping multiple installs on schedule without downtime. The ergonomic handle, quick-connect mandrel and crossbar, and at-a-glance battery power indicator round out a tool built for real-world service work — from rooftop RTUs to tight mechanical closets.

For techs who need to bend the opposite direction around obstacles, the optional NTBRK Reverse Bending Attachment Kit (sold separately) expands the tool’s flexibility even further. Backed by a 2-year NAVAC warranty and included with a carry case, the NTB7L2 is the cordless upgrade serious HVACR professionals have been waiting for.

Features:

• Cordless battery-powered tube bender — NBF3 7.2V 2.0Ah lithium-ion battery with fast Type-C charging delivers 100+ bends per charge and recharges in just 45 minutes
• 7-in-1 patented tubing size selector — bends 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, and 7/8″ OD soft HVACR copper tubing with one tool
• One-button 90° operation — push and hold for automatic 90° bends, or release anytime for custom angles on mini-split and VRF line sets
• Automatic tube release — easy-release baffle frees tubing instantly after each bend, speeding up repetitive installs
• Quick-connect mandrel and crossbar — swap components fast without extra tools for maximum job-site efficiency
• Ergonomic handle design — balanced 6.2 lb body (with battery) reduces technician fatigue on all-day copper bending work
• At-a-glance battery power indicator — check remaining charge instantly so you’re never caught mid-bend
• NTBRK reverse bending attachment compatible — optional kit (sold separately) enables bends around obstacles in tight installations
• 2023 Dealer Design Awards Gold Winner — recognized by The NEWS as a best-in-class HVACR tool innovation
• 2-year NAVAC warranty — includes NBF3 battery and rugged carry case for organized transport
