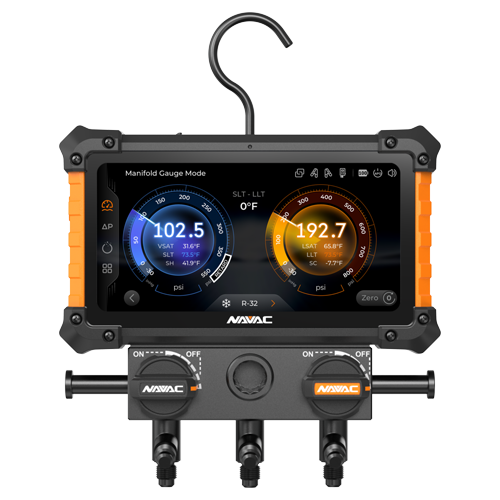

NAVAC NX1G NEXUS 2 Wireless Digital HVAC Manifold Gauge Set with 5.5″ HD Touchscreen

Description

The NAVAC NEXUS 2 (NX1G) is a professional-grade wireless digital manifold gauge set built around a true 5.5″ HD color touchscreen — giving working technicians a single, intuitive display for pressures, temperatures, superheat, subcooling, and vacuum decay readings. Spend less time navigating menus and more time getting systems back online.

Pair the NX1G with NAVAC’s NST1/NST2 wireless temperature clamps and the NMV1S micron vacuum gauge over Bluetooth (up to 260 ft line of sight) to run a full evacuation, charge, or leak test from anywhere on the jobsite. Class 0.4 accuracy, support for 100+ refrigerants including next-generation A2Ls like R-32 and R-454B, and seamless integration with the myNAVAC and measureQuick apps make the NEXUS 2 a future-proof investment — firmware updates roll out through the app, so the gauge gets smarter over time.

Built for the demands of daily HVAC work: aluminum body, IP54 dust and water protection, shock-absorbing corner guards, 1/4-turn ball valves, 360° swivel ports, and an 8–100 hour rechargeable lithium battery with USB-C quick charge. The NX1G kit includes wireless temperature clamps for a complete manifold and temperature measurement solution right out of the case.

Backed by a 2-year warranty.

Features

• 5.5″ HD Color Touchscreen — Highly responsive IPS display (1024 x 512) with four selectable themes (Classic, America, Galaxy, Daylight) and adjustable brightness for any lighting condition
• Class 0.4 Digital Accuracy — Precision pressure readings with live superheat and subcooling calculations displayed on screen
• A2L Refrigerant Ready — Supports 100+ refrigerants including R-32, R-454B, R-410A, R-1234yf, R-134a, and legacy CFCs/HCFCs; refrigerant library updatable via myNAVAC app
• Wireless Bluetooth Ecosystem — Pairs with NST1 low-side and NST2 high-side temperature clamps plus the NMV1S wireless micron gauge at up to 260 ft line of sight
• Multi-Mode Operation — Manifold Gauge mode, Leak Test mode, and Evacuation mode with vacuum decay test, all accessible from the touchscreen
• App Integration — Compatible with myNAVAC and measureQuick for digital service records, system diagnostics, and over-the-air firmware updates
• Rugged Construction — Aluminum body, heavy-duty outer shell, shock-absorbing corner protection, and IP54 rating for dust and water resistance
• Pro-Grade Hardware — Three 1/4″ SAE ports with 360° swivel fittings and 1/4-turn ball valves for fast, precise hose management; rated to 1,087 psi (7,500 kPa)
• All-Day Battery Life — 3,000 mAh rechargeable lithium battery delivers 8–100 hours of run time depending on use; quick charges via USB-C
• Truck-Ready Portability — Multi-purpose carry case, folding hook, and extension canvas hook for hanging at the unit
• Multilingual Interface — English, Spanish, and French

What’s In The Box

• NEXUS 2 manifold gauge unit
• NST1 low-side Bluetooth temperature clamp
• NST2 high-side Bluetooth temperature clamp
• USB-C charging cable
• Storage bag
