Description

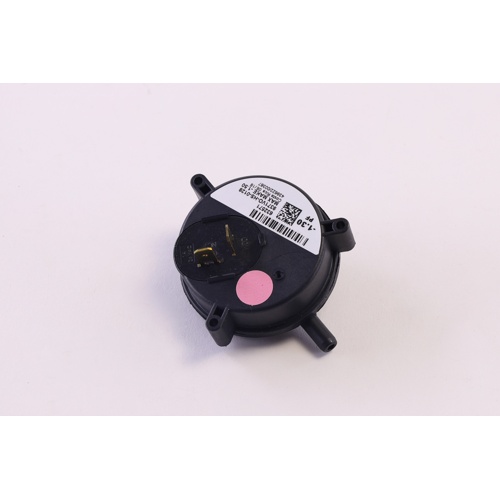

The Nordyne 632571 is an OEM replacement SPST (Single-Pole, Single-Throw) pressure switch engineered for precise draft and combustion air proving in Nordyne-family furnaces and air handlers. With a calibrated set point of -1.3″ w.c. (water column), this switch monitors negative pressure within the venting or inducer circuit and interrupts the control circuit if safe operating conditions are not met — helping protect the heat exchanger and prevent unsafe furnace operation.
Key Features
- OEM Nordyne replacement part — direct-fit for compatible Nordyne, Frigidaire, Tappan, Gibson, and related brand furnace models
- SPST (Single-Pole, Single-Throw) switching action for straightforward normally-open or normally-closed circuit control
- Calibrated set point: -1.3″ w.c. (water column)
- 1/4″ barb port connection for secure hose attachment to the pressure tap
- Monitors inducer/draft pressure to verify proper venting before allowing burner ignition
- Helps prevent heat exchanger damage and carbon monoxide hazards caused by blocked or inadequate venting
Specifications
- SKU: 632571
- Brand: Nordyne
- Switch Type: SPST (Single-Pole, Single-Throw)
- Set Point: -1.3″ w.c.
- Port Connection: 1/4″ barb
- Application: Furnace draft/inducer pressure proving
Application & Installation
This pressure switch is designed as a safety interlock in the furnace control sequence. It connects via a rubber hose to the inducer housing or collector box pressure port. During normal operation, the inducer motor creates the negative pressure required to close (or open) the switch contacts and allow the control board to proceed with ignition. If the measured pressure does not reach the -1.3″ w.c. threshold — due to a blocked flue, failed inducer, or collapsed hose — the switch will not actuate, locking out the burner and alerting the homeowner or technician to a venting issue. Always verify compatibility with your specific furnace model before installation.
