Description

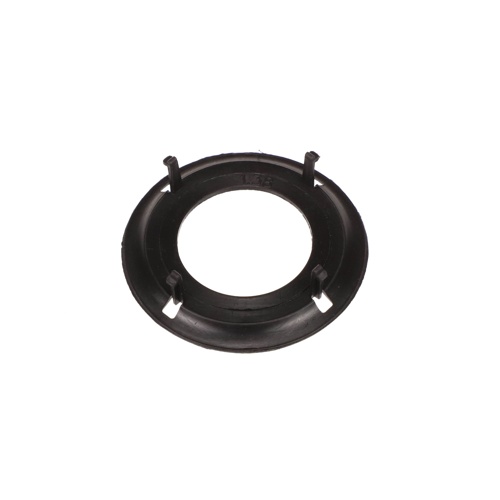

The Nordyne 669717R is a factory OEM inducer ring orifice designed to maintain precise combustion airflow in Nordyne-family furnaces. With a 1.38″ orifice diameter, this ring controls the volume of air drawn through the heat exchanger by the draft inducer assembly, ensuring proper fuel-to-air ratios, stable burner operation, and safe flue gas venting.
Product Overview
The inducer ring orifice is a critical combustion component positioned within the inducer housing or collector box. It meters the airflow generated by the draft inducer blower motor, directly influencing combustion efficiency and pressure switch operation. Replacing a worn, cracked, or incorrect orifice ring restores factory-specified performance and helps prevent nuisance pressure switch faults.
Key Features
- OEM Nordyne replacement part — ensures exact fit and performance
- 1.38″ orifice diameter for precise airflow metering
- Designed for use with Nordyne draft inducer assemblies
- Maintains correct combustion air-to-fuel ratios
- Supports proper pressure switch differential operation
- Durable construction for long service life in high-temperature flue environments
Application
- Compatible with select Nordyne, Frigidaire, Gibson, Tappan, and Westinghouse brand furnaces using the Nordyne platform
- Intended for use in gas furnace draft inducer systems
- Suitable for residential heating applications
Installation Notes
Always verify compatibility with your specific furnace model number before ordering. Inspect the inducer housing and collector box for cracks or debris when replacing the orifice ring. Consult the furnace service manual for proper torque specifications and reassembly procedures.
