Description

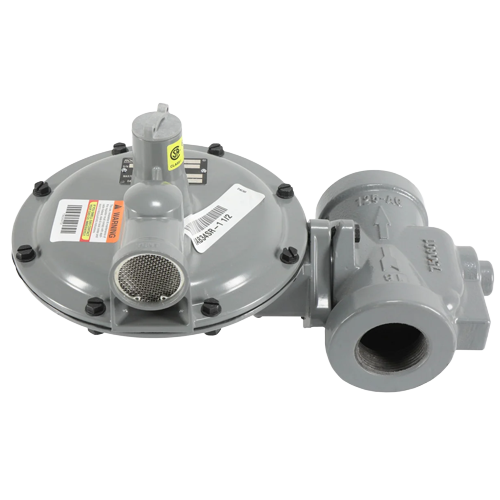

The Norgas Controls and Metering B34SR-1 1/2 is a 1-1/2″ internal relief valve (IRV) gas regulator engineered for dependable downstream pressure regulation in commercial and industrial gas distribution systems. Featuring a 5/8″ x 3/4″ orifice and a factory-set 6–9″ W.C. spring range, this regulator delivers precise, consistent outlet pressure control to protect downstream appliances and equipment from over-pressurization.
Norgas Controls and Metering is a trusted name in gas metering and regulation, manufacturing products built to withstand the demands of commercial gas service. The B34SR series combines robust construction with an integrated internal relief function, providing an added layer of safety by venting excess pressure directly within the regulator body — eliminating the need for a separate external relief valve in many applications.
Key Features
- 1-1/2″ pipe connection size for straightforward installation into standard commercial gas lines
- Internal relief valve (IRV) design — provides built-in overpressure protection without a separate external relief device
- 5/8″ x 3/4″ orifice for optimized flow capacity matched to the 6–9″ W.C. outlet pressure range
- 6–9″ W.C. spring range delivers stable, accurate outlet pressure regulation
- Rugged construction suitable for commercial and light industrial natural gas and LP gas applications
- Compact, serviceable design from a proven gas controls manufacturer
Specifications
- Brand: Norgas Controls and Metering
- Model / SKU: B34SR-1 1/2
- Connection Size: 1-1/2″
- Valve Type: Internal Relief Valve (IRV) Gas Regulator
- Orifice Size: 5/8″ x 3/4″
- Spring Range: 6–9″ W.C.
Applications
- Commercial and industrial gas distribution systems
- Natural gas and LP gas service lines
- Downstream pressure regulation for boilers, furnaces, rooftop units, and commercial cooking equipment
- Installations requiring integrated internal relief protection per code or engineering specification
