Description

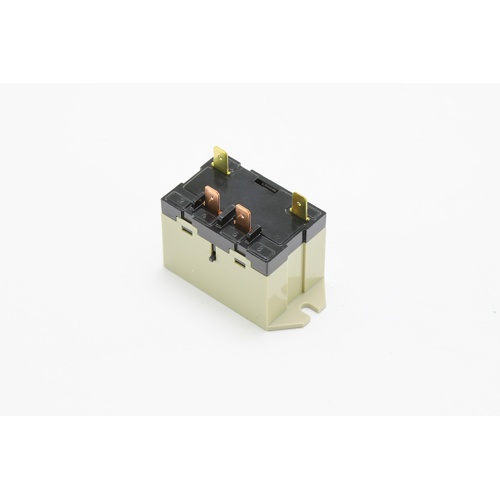

The Omron G7L-1A-TUBJ-CBAC24 is a high-capacity, single-pole single-throw normally open (SPST-NO) power relay engineered for demanding HVAC and industrial electrical control applications. Rated at 30 amps with a 24Vac coil voltage, this relay delivers reliable switching performance for loads that standard relays cannot handle, making it an ideal choice for compressor contactors, fan motor circuits, and other high-current control tasks.
Key Features
- SPST-NO (Single-Pole Single-Throw, Normally Open) contact configuration
- 24Vac coil voltage for compatibility with standard HVAC control circuits
- 30-amp high-capacity contact rating for heavy-duty switching
- Quick-connect terminals for fast, tool-friendly wiring installation
- Integrated test button allows manual relay actuation for commissioning and troubleshooting without energizing the coil
- Upper bracket mounting for secure, vibration-resistant panel or enclosure installation
Application Highlights
- HVAC compressor and condenser fan motor control circuits
- Commercial and industrial electrical control panels
- Load switching in building automation systems
- Replacement relay for high-current switching applications requiring 24Vac coil control
Why Choose the Omron G7L Series
Omron’s G7L series is recognized throughout the HVAC and electrical trades for its robust construction, high contact reliability, and long service life. The combination of quick-connect terminals, a built-in test button, and upper bracket mounting hardware makes the G7L-1A-TUBJ-CBAC24 exceptionally easy to install, test, and maintain — reducing downtime on the job and in the field.
