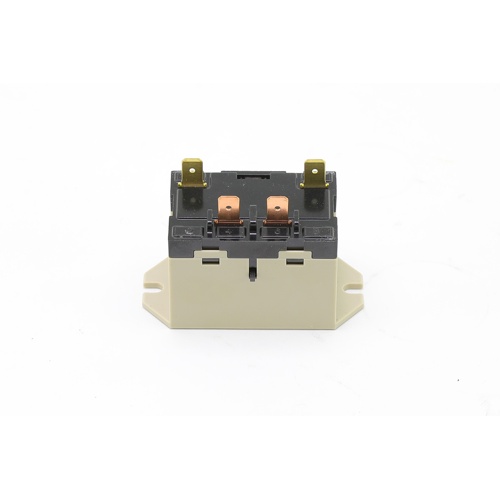

Omron G7L-1ATUBJCBAC120V High Capacity Power Relay Overview
The Omron G7L-1ATUBJCBAC120V is a heavy-duty, high capacity power relay engineered for demanding HVAC and industrial control applications. Featuring a single-pole, single-throw normally open (SPST-NO) configuration with a 120VAC coil and a robust 30-amp contact rating, this relay delivers reliable switching performance for high-load circuits. The quick-connect terminals simplify wiring and reduce installation time, while the built-in test button allows technicians to manually actuate the relay for fast, convenient commissioning and troubleshooting. The upper bracket mounting design provides secure, stable installation in control panels and electrical enclosures.
Key Features
- Contact Configuration: SPST-NO (Single-Pole, Single-Throw, Normally Open)
- Coil Voltage: 120VAC
- Contact Rating: 30 Amps — high capacity for heavy electrical loads
- Quick-connect terminals for fast, tool-friendly wiring
- Integrated test button for manual actuation and field verification
- Upper bracket mounting for secure panel or enclosure installation
- Omron quality construction for long service life and dependable operation
Applications
- HVAC control panels and air handling unit switching circuits
- Compressor and fan motor load switching
- Industrial automation and building automation systems
- High-current electrical control applications requiring reliable relay switching
Product Specifications
- SKU: G7L-1ATUBJCBAC120V
- Brand: Omron
- Contact Form: SPST-NO
- Coil Voltage: 120VAC
- Contact Current Rating: 30A
- Terminal Type: Quick-connect
- Mounting Style: Upper bracket
- Relay Type: High Capacity Power Relay
