Description

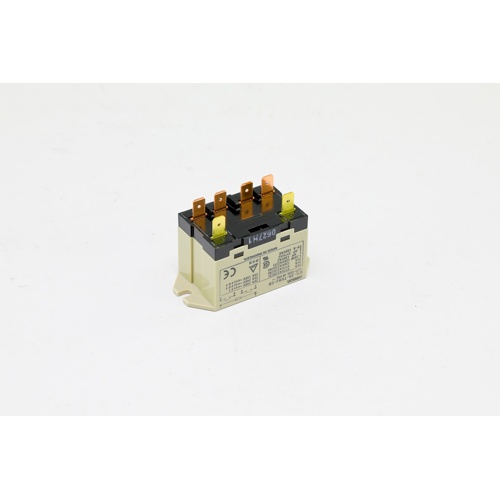

The Omron G7L-2A-TUBJ-CBAC24 is a high capacity power relay engineered for demanding HVAC and industrial control applications. With a DPST-NO (Double Pole Single Throw, Normally Open) contact configuration and a 24VAC coil voltage, this relay delivers reliable switching performance at up to 25 amps, making it well suited for controlling motors, compressors, heating elements, and other high-load electrical circuits.
Key Features
- DPST-NO contact configuration for straightforward normally-open switching
- 24VAC coil voltage for compatibility with standard HVAC control circuits
- 25-amp high capacity rating handles heavy electrical loads with ease
- Quick-connect terminals for fast, tool-free field wiring and installation
- Integrated test button allows manual relay actuation for commissioning and troubleshooting without energizing the coil
- Upper bracket mounting design for secure, vibration-resistant panel installation
Specifications
- SKU: G7L-2A-TUBJ-CBAC24
- Brand: Omron
- Contact Configuration: DPST-NO (Double Pole Single Throw, Normally Open)
- Coil Voltage: 24VAC
- Contact Current Rating: 25 Amps
- Terminal Type: Quick-connect
- Mounting Style: Upper bracket
Applications
- HVAC compressor and fan motor switching
- Commercial and residential heating and cooling control panels
- Industrial automation and machinery control circuits
- Load switching in building automation systems
The G7L series from Omron is recognized for its robust construction and long electrical life, providing contractors and technicians with a dependable relay solution that simplifies installation and reduces service callbacks.
