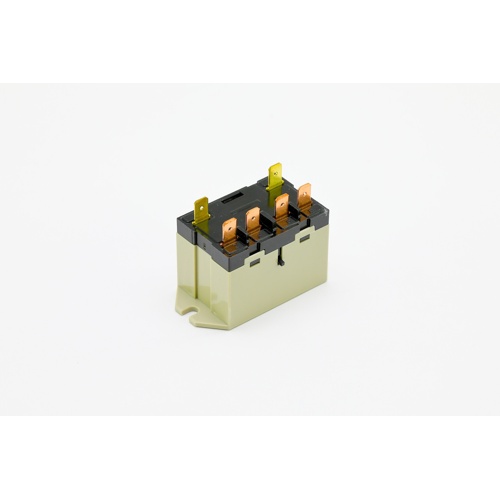

Omron G7L-2A-TUBJCBAC200 High Capacity Power Relay Overview
The Omron G7L-2A-TUBJCBAC200 is a heavy-duty, high capacity power relay engineered for demanding electrical control applications in HVAC systems and industrial equipment. Featuring a DPST-NO (Double Pole Single Throw, Normally Open) contact configuration, this relay is rated for 200–240VAC coil voltage and handles up to 25 amps of load current, making it well suited for switching high-current loads such as compressors, fan motors, heating elements, and other HVAC components.
Key Features
- DPST-NO contact configuration for reliable normally open switching
- 200–240VAC coil voltage for compatibility with standard commercial and industrial power supplies
- 25-amp high capacity contact rating for heavy-duty load switching
- Quick-connect terminals for fast, tool-free wiring and simplified installation
- Integrated test button allows manual actuation for easy circuit verification and troubleshooting without energizing the coil
- Upper bracket mounting design for secure panel or DIN-rail adjacent installation
- Compact, robust construction suitable for HVAC control panels and electrical enclosures
Applications
- HVAC compressor and fan motor control circuits
- Commercial and industrial electrical control panels
- Heating element switching
- Building automation and equipment control systems
- Load switching in high-current AC circuits
Product Specifications
- Brand: Omron
- Model / SKU: G7L-2A-TUBJCBAC200
- Contact Configuration: DPST-NO (Double Pole Single Throw, Normally Open)
- Coil Voltage: 200–240VAC
- Contact Current Rating: 25 Amps
- Terminal Type: Quick-connect
- Mounting Style: Upper bracket mounting
- Test Button: Yes
