Description

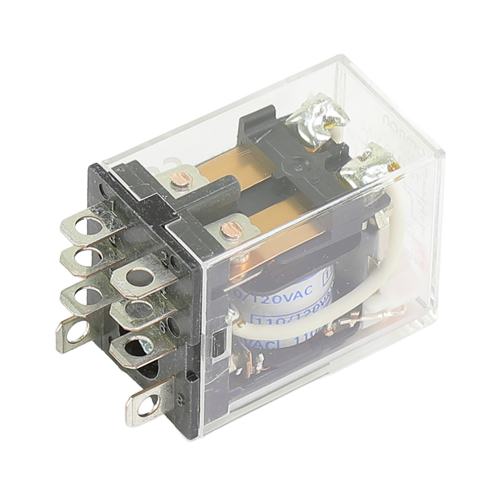

The Omron LY2N-AC110/120 is a rugged, industrial-grade general purpose relay engineered for reliable switching in HVAC control panels, building automation systems, and a wide range of electrical applications. With a Double Pole Double Throw (DPDT) contact configuration and a 110–120VAC coil voltage, this relay delivers versatile, dependable performance in demanding environments.
Key Features
- DPDT (Double Pole Double Throw) contact configuration for versatile circuit switching
- 110–120VAC coil voltage for compatibility with standard North American control circuits
- 10 Amp contact rating for handling moderate electrical loads
- Built-in LED indicator for quick, at-a-glance coil energization status
- Plug-in and solder terminal options for flexible installation and easy field replacement
- Standard bracket mounting for secure panel or DIN-rail-adjacent installation
- Compact LY-series form factor — a trusted Omron platform widely used in HVAC and industrial controls
Specifications
- SKU / Part Number: LY2N-AC110/120
- Brand: Omron
- Contact Configuration: DPDT (2 Form C)
- Coil Voltage: 110–120VAC
- Contact Current Rating: 10 Amps
- Indicator: LED
- Terminal Type: Plug-in / Solder
- Mounting: Standard Bracket
Applications
- HVAC control panels and air handling unit controls
- Building automation and energy management systems
- Fan, pump, and motor switching circuits
- Industrial control panels and OEM equipment
- General electrical switching and load control
