Description

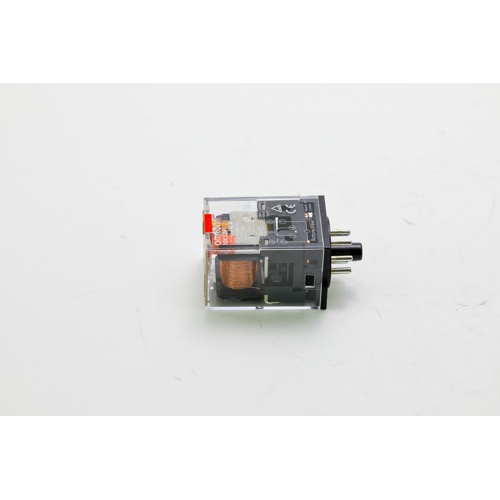

The Omron MKS2PI-AC24 is a double-pole, double-throw (DPDT) general purpose relay engineered for dependable performance in HVAC control panels, building automation systems, and a wide range of industrial electrical applications. Rated at 24Vac coil voltage and 10 amps of switching capacity, this relay delivers the power-handling capability needed for demanding HVAC environments.
Key Features
- DPDT (Double-Pole, Double-Throw) contact configuration for versatile switching applications
- 24Vac coil voltage — ideal for low-voltage HVAC control circuits
- 10 Amp contact rating for reliable load switching
- Plug-in terminal design for fast, tool-free installation and easy field replacement
- Built-in mechanical indicator for quick visual confirmation of relay energization status
- Lockable test button allows technicians to manually actuate the relay for circuit testing and commissioning without applying coil voltage
Application Benefits
- Suitable for HVAC control panels, fan coil units, air handling units, and building automation systems
- Plug-in terminal design reduces downtime during maintenance and replacement
- Mechanical indicator and lockable test button streamline troubleshooting and system commissioning
- Compact general purpose relay form factor fits standard relay sockets
Specifications
- Brand: Omron
- Model / SKU: MKS2PI-AC24
- Contact Configuration: DPDT (2 Form C)
- Coil Voltage: 24Vac
- Contact Rating: 10 Amps
- Terminal Type: Plug-in
- Indicator: Mechanical
- Test Button: Lockable
