Description

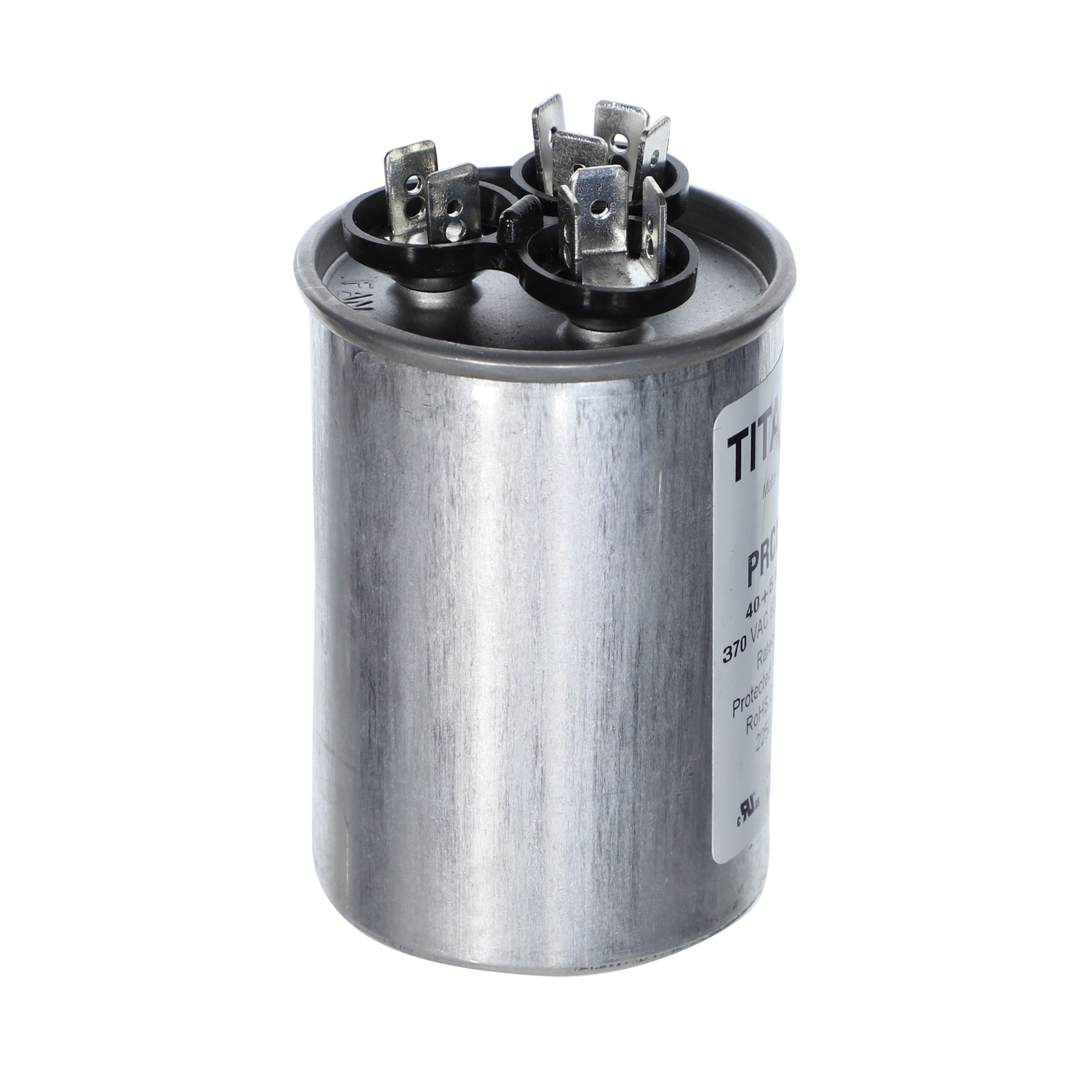

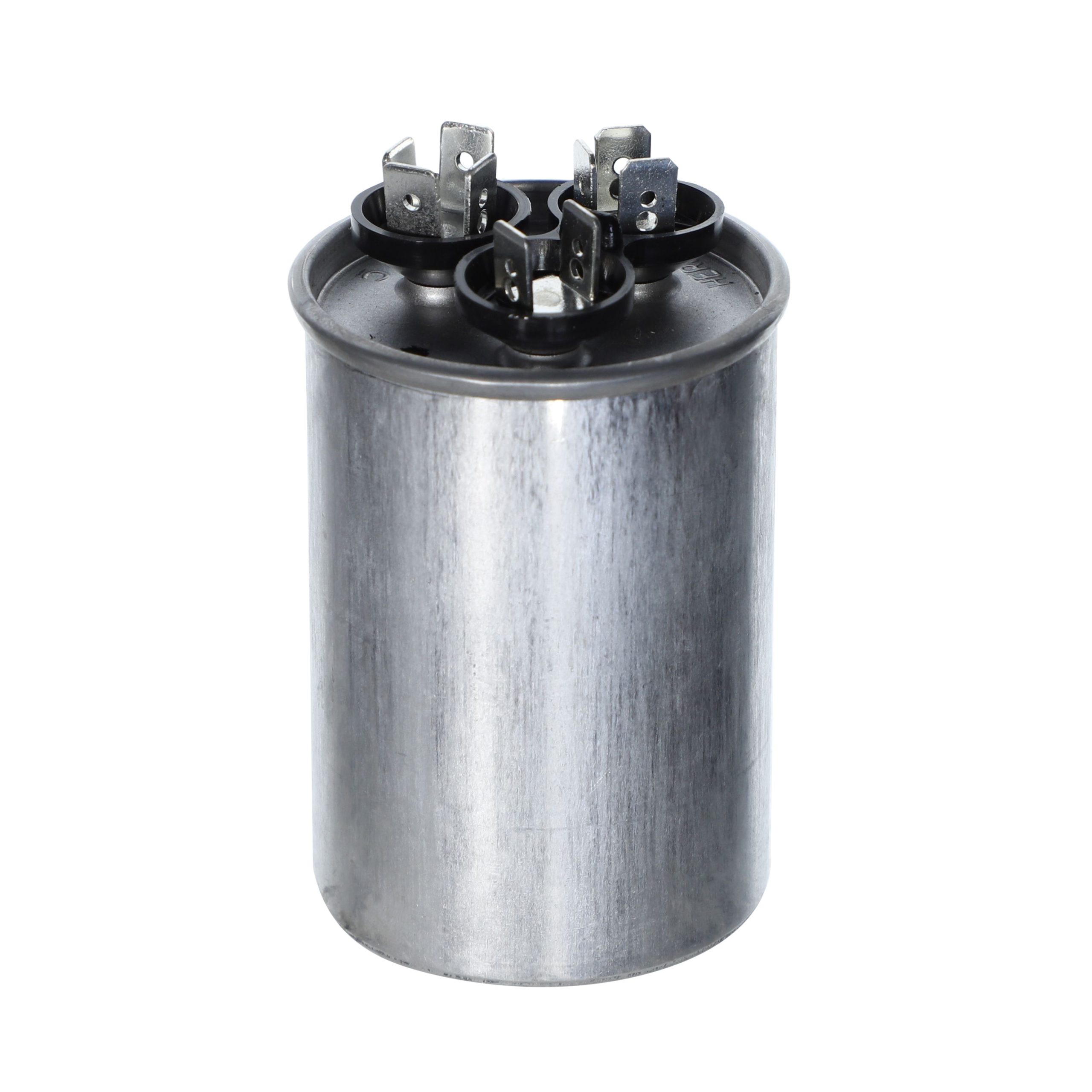

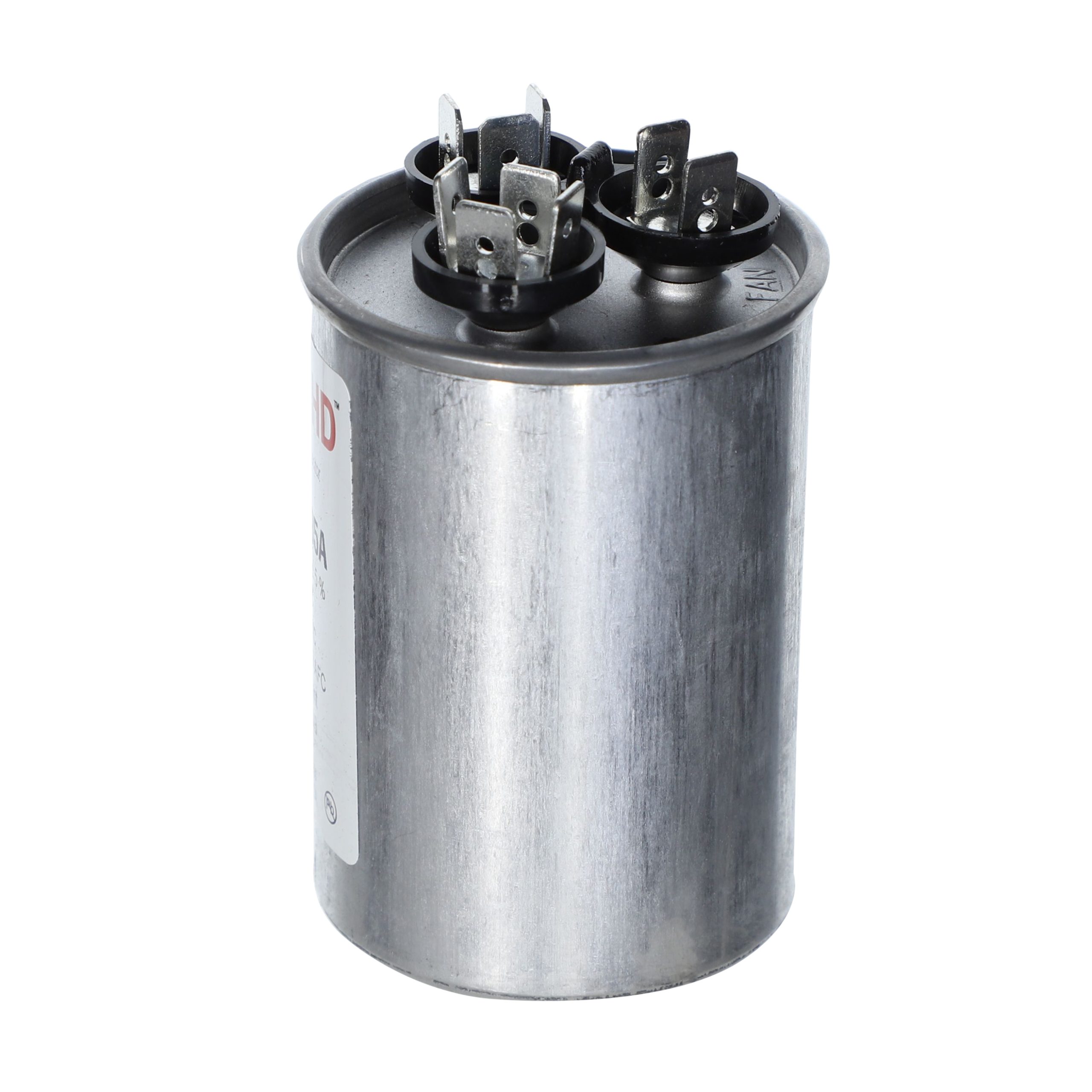

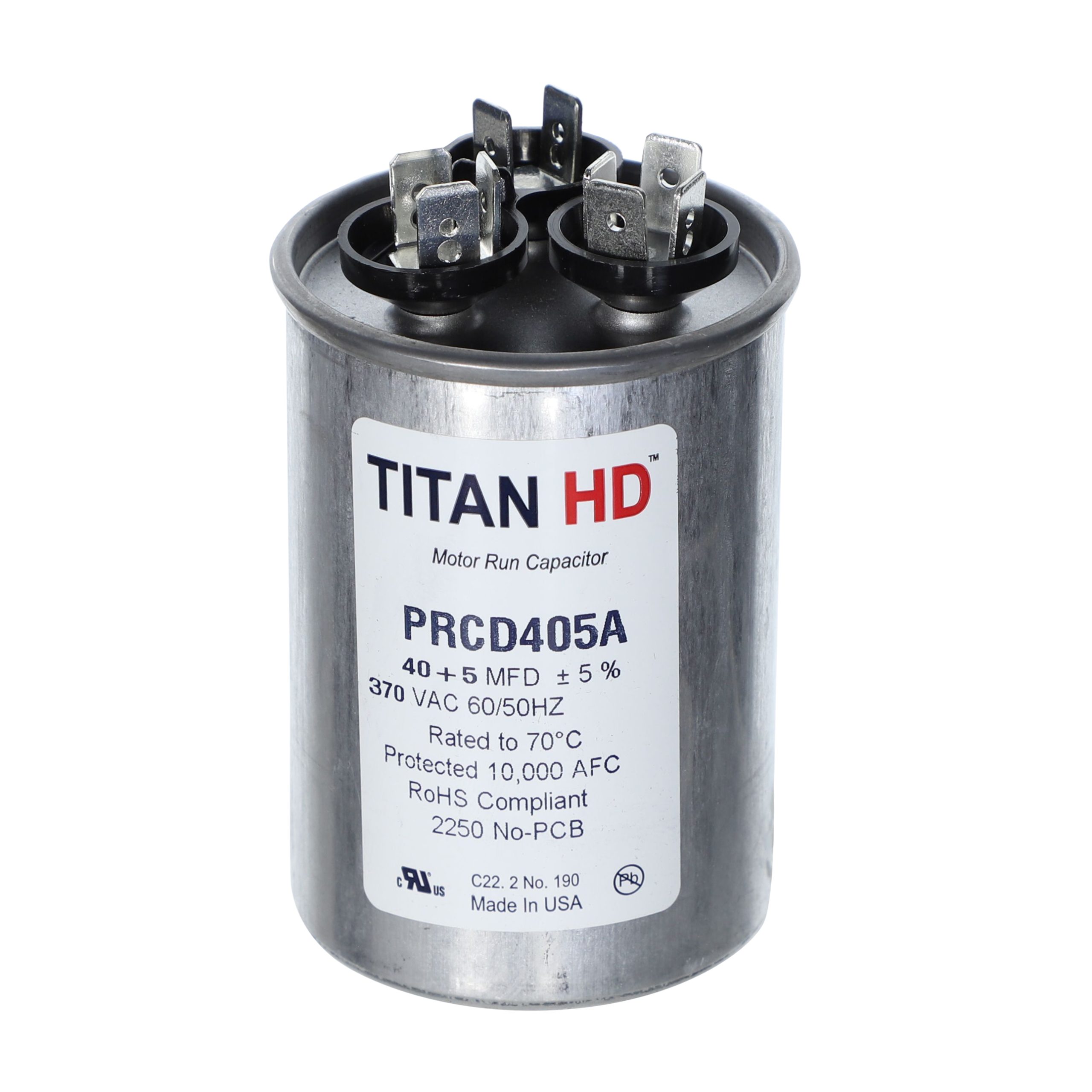

The Packard PRCD405A is a Titan HD 40+5 MFD, 370V, Round Dual Run Capacitor for HVAC motors and compressors. Titan HD capacitors are proudly Made in USA and engineered for professional-grade reliability with a 60,000-hour operating life, meeting the rigorous EIA-456-A industry standard. The patented, environmentally friendly oil prevents corrosion and optimizes heat transfer, while the UL-approved pressure-sensitive interrupter safely removes the capacitor from the circuit at end of life. This dual-rated capacitor houses two capacitance values in a single unit, powering both the compressor and the fan motor simultaneously – simplifying installation and reducing component count.
Features:
- Made in USA
- Round form factor for standard HVAC mounting
- 60,000-hour rated operating life
- Meets EIA-456-A industry performance standard
- UL-approved pressure-sensitive interrupter for safe end-of-life circuit removal
- Metalized polypropylene film technology – self-restoring
- Patented corrosion-resistant, environmentally friendly dielectric oil
- Dual capacitance powers compressor and fan motor in a single unit
Specifications:
| Capacitance | 40+5 MFD |
| Voltage Rating | 370V |
| Shape | Round |
| Type | Dual Run |
| Operating Life | 60,000 hours |
| Origin | Made in USA |
Mark Suarez (verified owner) –
I bought this because I also purchased a Soft Start and convinced it would be wise to use it with a brand new fresh Capacitor. I installed this capacitor before installing the Soft Start and definitely noticed less struggling and buzzing from my 2.5 ton Nordyne the heat pump on start up.
