Description

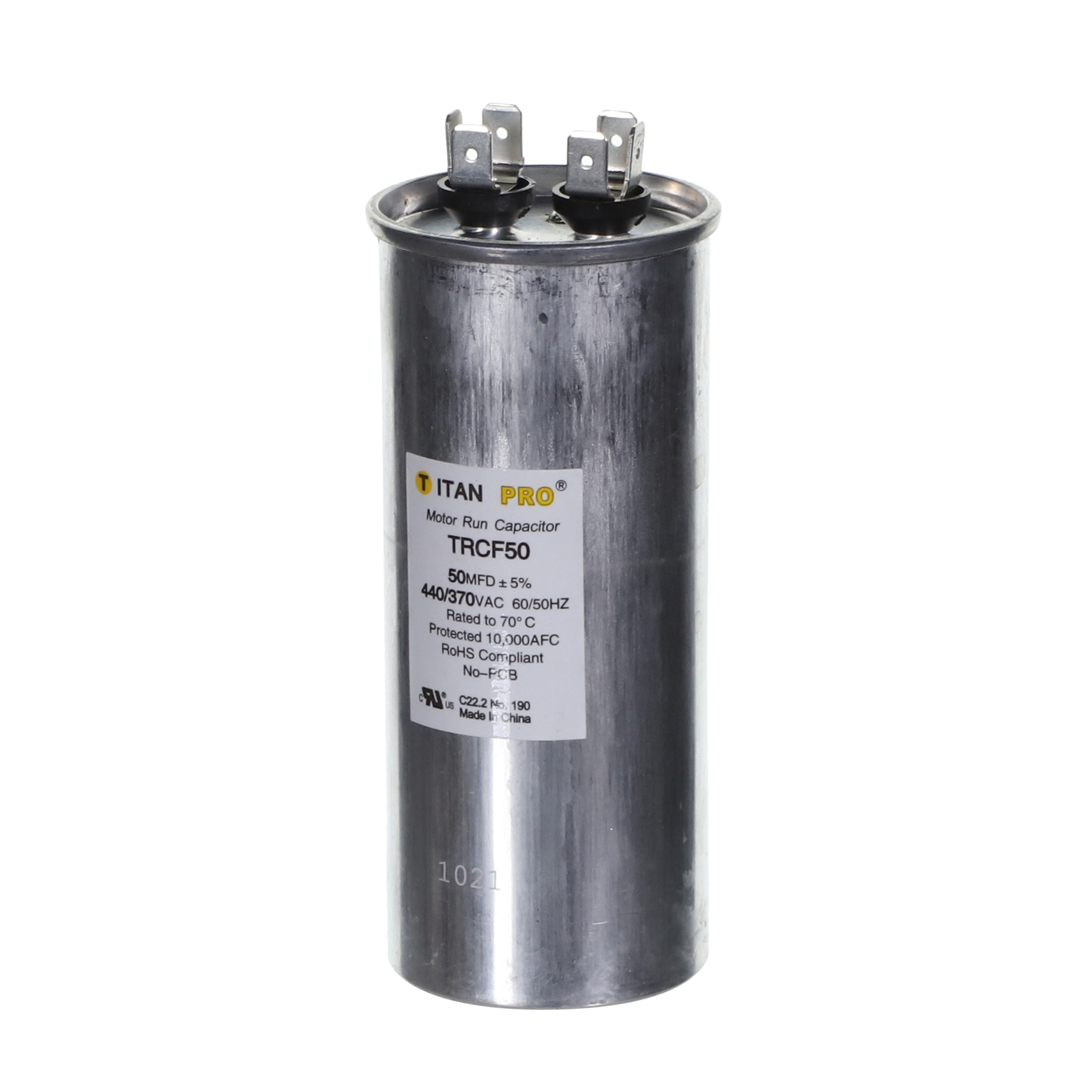

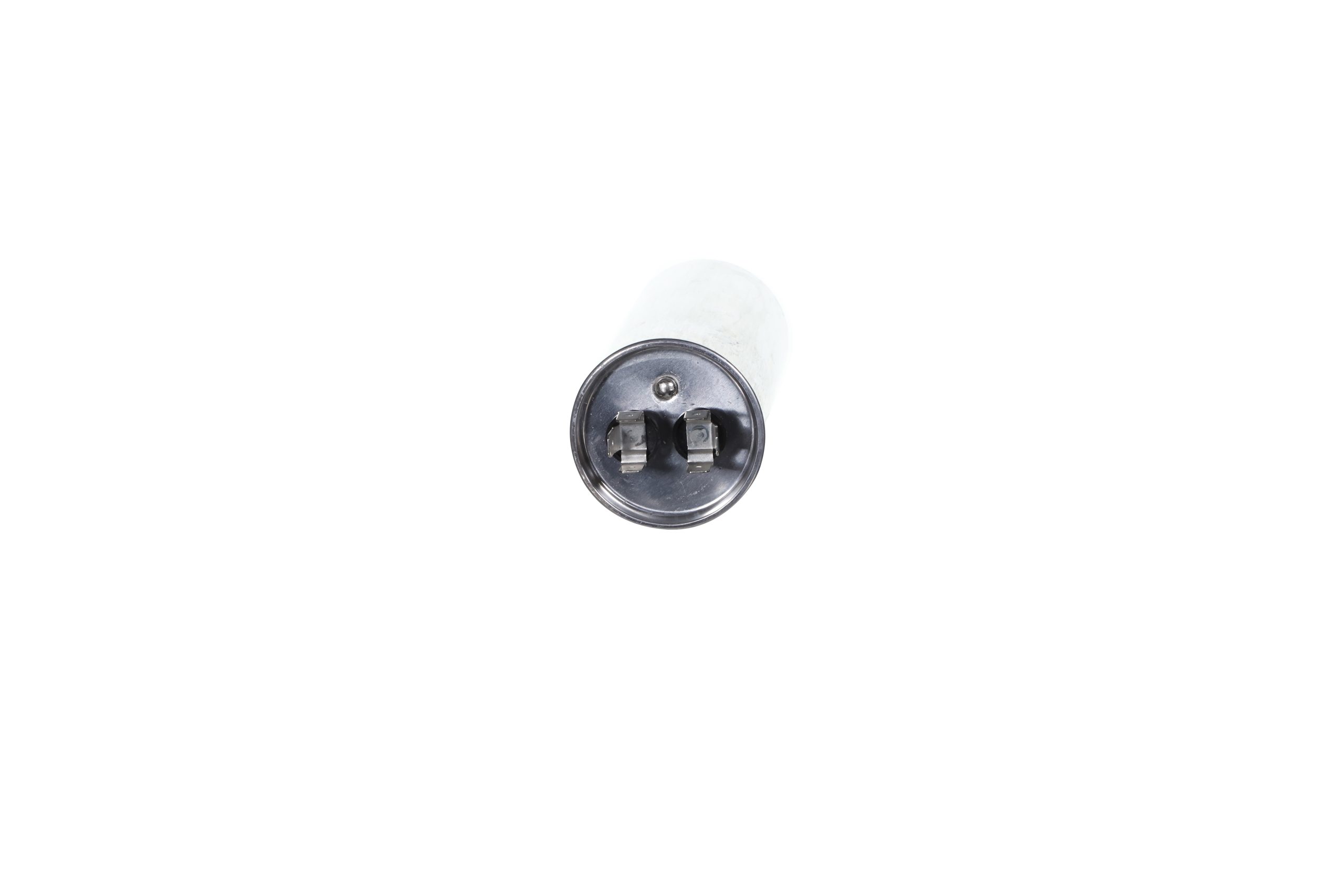

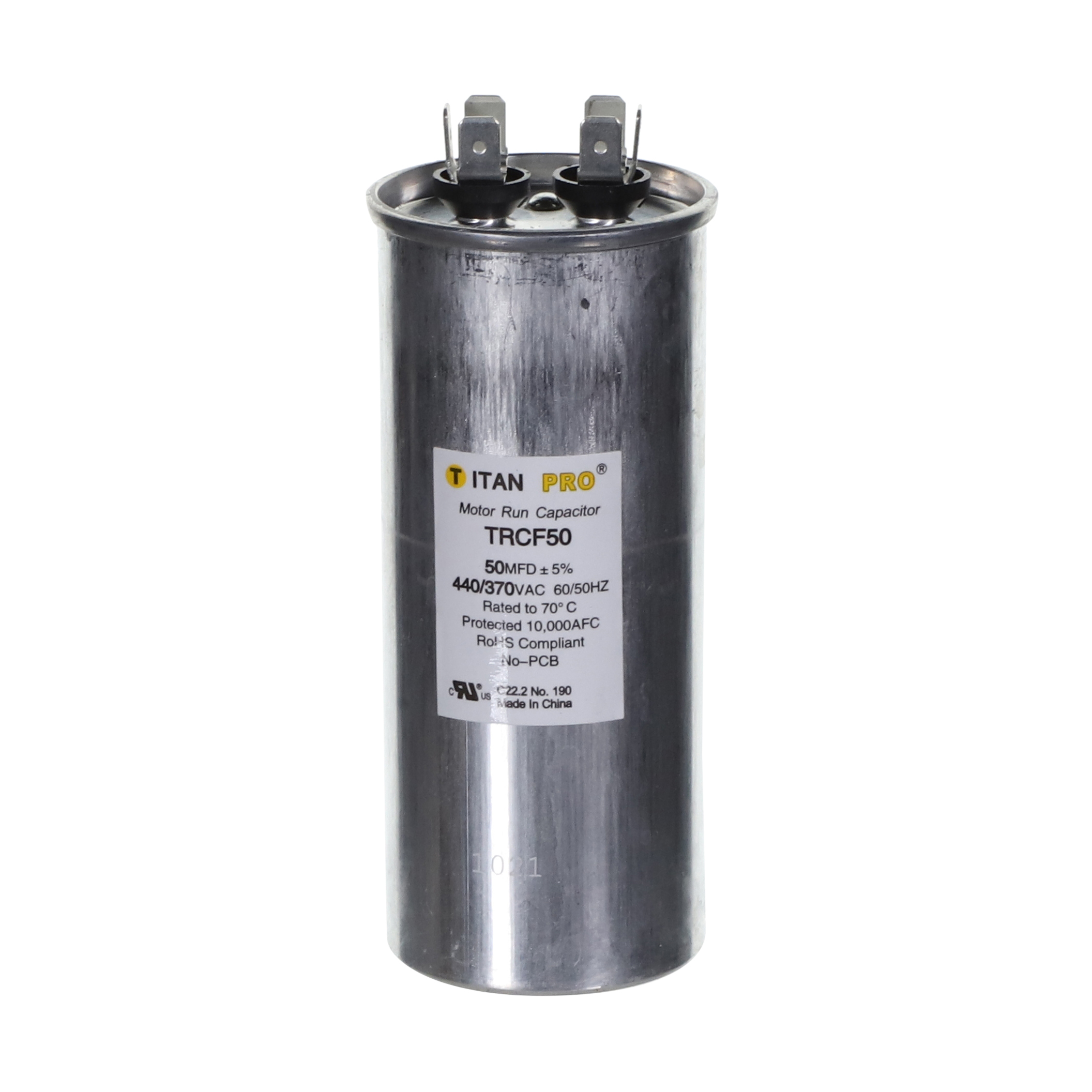

The Packard TRCF50 is a Titan ProCap 50 MFD, 440/370V, Round Single Run Capacitor for HVAC motors and compressors. Titan ProCap run capacitors deliver dependable performance for residential and light-commercial HVAC compressor and fan motor applications. Built to exacting quality standards with metalized polypropylene film technology for self-restoration in the event of a breakdown, and a UL-approved pressure-sensitive interrupter for safe end-of-life removal. The dual-voltage rating (440/370V) allows this capacitor to replace both 370V and 440V units.
Features:
- Round form factor for standard HVAC mounting
- 60,000-hour rated operating life
- Meets EIA-456-A industry performance standard
- UL-approved pressure-sensitive interrupter for safe end-of-life circuit removal
- Metalized polypropylene film technology – self-restoring
- Patented corrosion-resistant, environmentally friendly dielectric oil
- Dual-voltage (440/370V) – replaces both voltage ratings
Specifications:
| Capacitance | 50 MFD |
| Voltage Rating | 440/370V |
| Shape | Round |
| Type | Single Run |
| Operating Life | 60,000 hours |
