Description

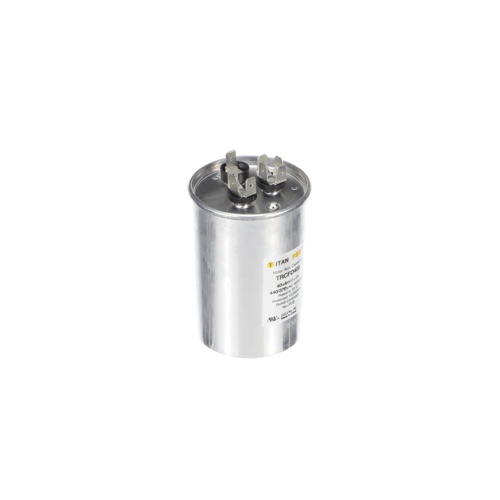

The Titan Pro TRCFD405 is a round, dual-section motor run capacitor rated 40+5 MFD at 440/370 VAC, designed for HVAC compressor and fan motor applications requiring dual capacitance values in a single unit. Every Titan Pro capacitor undergoes 100% electrical testing prior to shipping, with accelerated life test data generated from 2,000 hours of testing at 125% voltage rating and 80°C, supporting a rated operating life of 60,000 hours. The TRCFD405 measures 2.36″ in diameter and 3.54″ in height (height dimension excludes terminals; add 1/2″ for terminal clearance). Backed by a 5-year warranty.
Features:
- Dual-section run capacitor: 40+5 MFD rating in one unit
- Rated for 440/370 VAC applications
- 60,000 hours of operating life
- 100% electrically tested prior to shipping
- Accelerated life test data from 2,000 hours at 125% voltage rating, 80°C
- Backed by a 5-year warranty
Specifications:
- Catalog No.: TRCFD405
- MFD Rating: 40+5
- Voltage: 440/370 VAC
- Case Style: Round, Dual Section
- Diameter: 2.36″
- Height: 3.54″ (excludes terminals; add 1/2″ for terminals)
- Industry Cross-Reference #s: 12286, 12178
