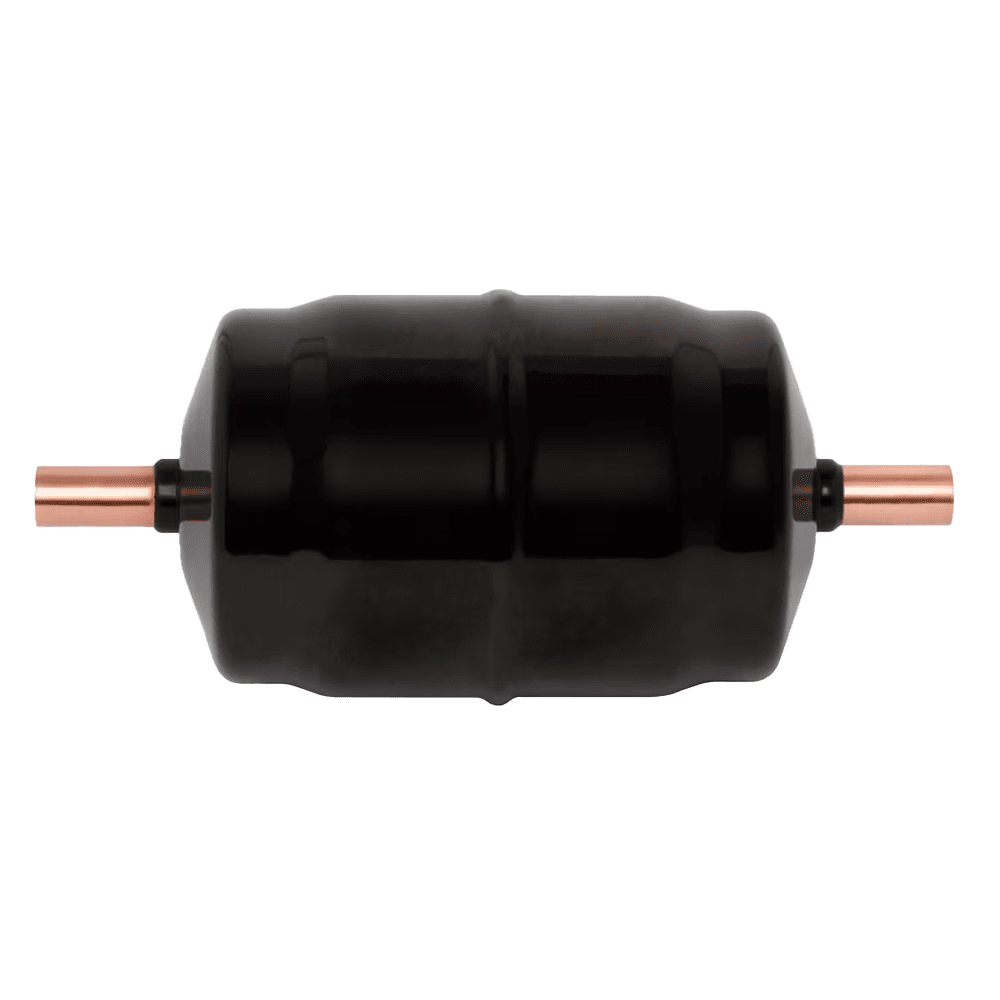

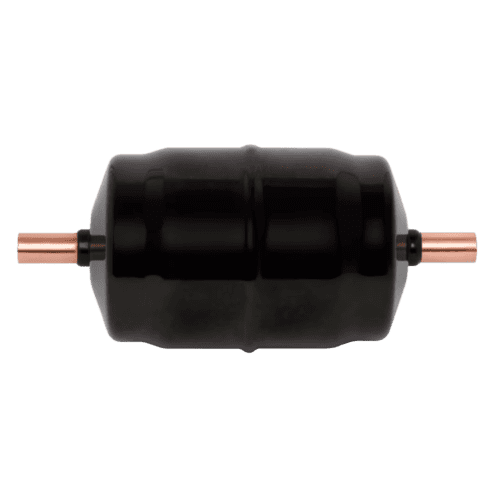

Parker 450300-001 BF Series BF-083S Heat Pump Liquid Line Filter-Driers

Description

Parker Hannifin BF series Bi-Flow filter-driers operate reversibly with low pressure drop and provide excellent contamination control to ensure reliability, capacity, and efficiency of air-conditioning systems up to 8 tons.

Markets:

• Residential & Commercial HVAC
• Transportation Air-conditioning

Features:

• Complete contaminant control to protect and extend system life and ensure system reliability
• Bi-Flow filter driers operate in either flow direction with low pressure drop
• Desiccant core provides reliable and effective removal of moisture, solid contaminants, and acid
• Sizes from 5 cu. in. to 16 cu. in. and 1/4” to 5/8” fittings for use up to 8 tons cooling capacity
• SAE flare fittings, solid copper ODF fittings, and solid copper ODM fittings (ZoomLock compatible) available
• Suitable for use with HCFC, HFC, HFO, and HC refrigerants
• UL Listed for 650 psig rated pressure for R-410A

Applications:

• Air Conditioning – Heat Pumps
