Description

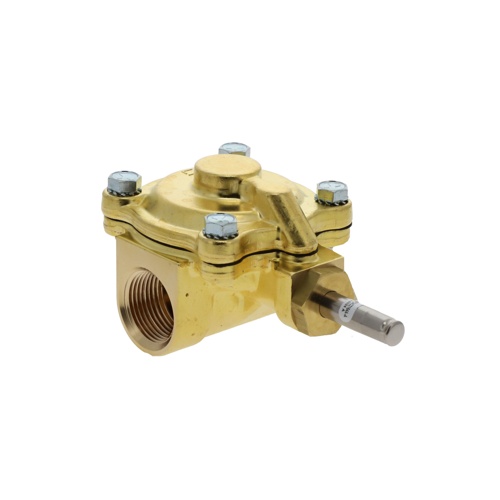

Parker-Sporlan 16F24C2164AAF Normally Closed Solenoid Valve
The Parker-Sporlan 16F24C2164AAF is a 1-inch normally closed (N/C) solenoid valve engineered for demanding HVAC and fluid control applications involving water and air service. With a generous Cv of 13, this valve delivers excellent flow capacity while maintaining precise on/off control. Its dual-rated pressure capability makes it a versatile choice for both hydronic and pneumatic system installations.
Key Features
- 1-inch pipe connection for straightforward installation into standard HVAC and plumbing systems
- Normally Closed (N/C) operation — valve closes automatically upon de-energization for fail-safe performance
- Water service pressure rating: 5–125 PSI differential
- Air service pressure rating: 5–150 PSI differential
- Flow coefficient (Cv) of 13 for high-capacity fluid flow
- Dual-media rated for both water and air applications
- Parker-Sporlan quality construction for long service life in commercial and industrial HVAC environments
Specifications
- SKU: 16F24C2164AAF
- Brand: Parker-Sporlan
- Connection Size: 1 inch
- Valve Action: Normally Closed (N/C)
- Water Differential Pressure Range: 5–125 PSI
- Air Differential Pressure Range: 5–150 PSI
- Cv (Flow Coefficient): 13
- Media: Water, Air
Applications
- Commercial HVAC hydronic systems
- Chilled and hot water distribution control
- Compressed air and pneumatic control circuits
- Industrial process fluid control
- Building automation and zone control systems
