Description

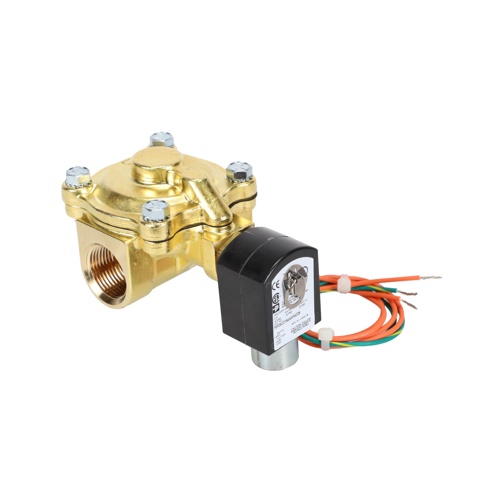

The Parker-Sporlan 16F24C2164AAF4C05 is a 1-inch normally closed (N/C) solenoid valve engineered for water service in demanding HVAC, plumbing, and mechanical system applications. Powered by a 120V AC coil and housed in a NEMA 4 rated enclosure, this valve delivers dependable, weatherproof performance in both indoor and outdoor installations.
Key Features
- Normally Closed (N/C) operation — valve closes automatically upon power loss for fail-safe shutoff
- 1″ pipe connection for straightforward integration into standard water lines
- 120V AC coil voltage for compatibility with common control circuits
- NEMA 4 enclosure rating — provides protection against windblown dust, rain, splashing water, and hose-directed water
- Operating pressure range: 5–125 PSI, suitable for a wide range of water system pressures
- Designed for water (WTR) media service
- Parker-Sporlan quality construction for long service life and reliable cycle performance
Specifications
- SKU: 16F24C2164AAF4C05
- Pipe Size: 1″
- Valve Action: Normally Closed (N/C)
- Coil Voltage: 120V AC
- Enclosure Rating: NEMA 4
- Pressure Range: 5–125 PSI
- Media: Water
- Brand: Parker-Sporlan
Applications
- HVAC water supply and shutoff circuits
- Hydronic heating and cooling systems
- Commercial plumbing and mechanical rooms
- Outdoor or wash-down environments requiring NEMA 4 protection
- Automated water control systems
Parker-Sporlan is a globally recognized leader in flow and motion control, and this solenoid valve reflects their commitment to precision engineering and field-proven reliability. Whether used in new construction or as a direct replacement, the 16F24C2164AAF4C05 provides the fail-safe shutoff and pressure handling your water system demands.
