Description

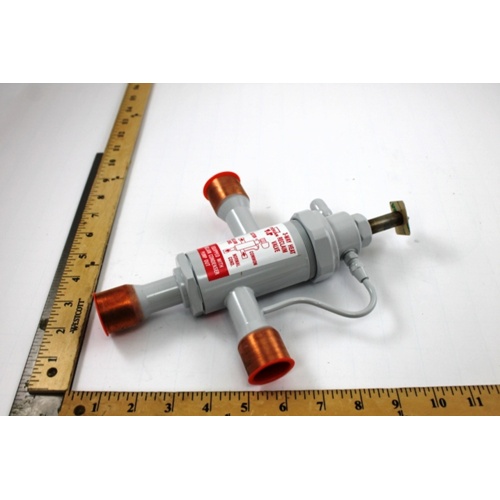

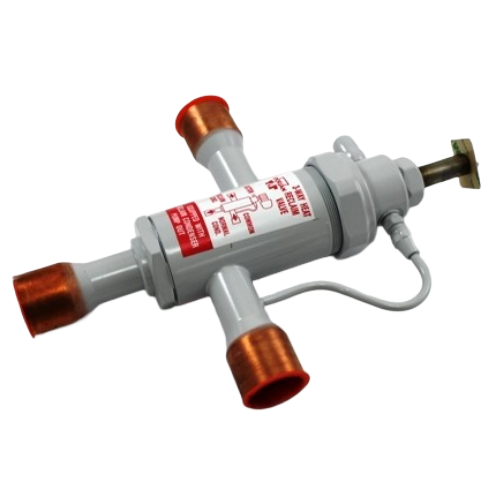

Sporlan Controls 3773-00 — 1-1/8″ 3-Way Heat Reclaim Valve
The Sporlan Controls 3773-00 is a 1-1/8″ 3-Way Heat Reclaim Valve engineered to redirect hot refrigerant discharge gas from the compressor to a heat reclaim coil. By capturing and repurposing waste heat that would otherwise be rejected at the condenser, this valve enables significant energy savings in commercial refrigeration and HVAC systems — reducing operating costs while improving overall system efficiency.
Designed and built to Sporlan’s exacting quality standards, the 3773-00 is a reliable solution for contractors and engineers looking to integrate heat reclaim functionality into new or existing refrigeration systems.
Key Features
- 1-1/8″ connection size for compatibility with medium-to-large commercial refrigeration systems
- 3-Way valve design diverts hot gas discharge to a heat reclaim coil or back to the standard condenser circuit
- Enables recovery of waste heat energy, reducing supplemental heating costs
- Engineered by Sporlan Controls — a trusted name in refrigeration flow control
- Suitable for integration into commercial refrigeration and HVAC heat reclaim applications
- Durable construction designed for long service life in demanding refrigeration environments
Application
The Sporlan 3773-00 is ideal for supermarkets, food service facilities, cold storage operations, and commercial HVAC systems where heat reclaim is used to offset space heating or water heating loads. The valve works by diverting compressor discharge gas — which carries substantial heat energy — to a reclaim coil when heat recovery is desired, then automatically or manually redirecting flow back to the condenser when reclaim is not needed.
Product Specifications
- SKU: 3773-00
- Brand: Sporlan Controls (Parker-Sporlan)
- Valve Type: 3-Way (3W) Heat Reclaim Valve
- Connection Size: 1-1/8″
- Application: Commercial refrigeration and HVAC heat reclaim systems
